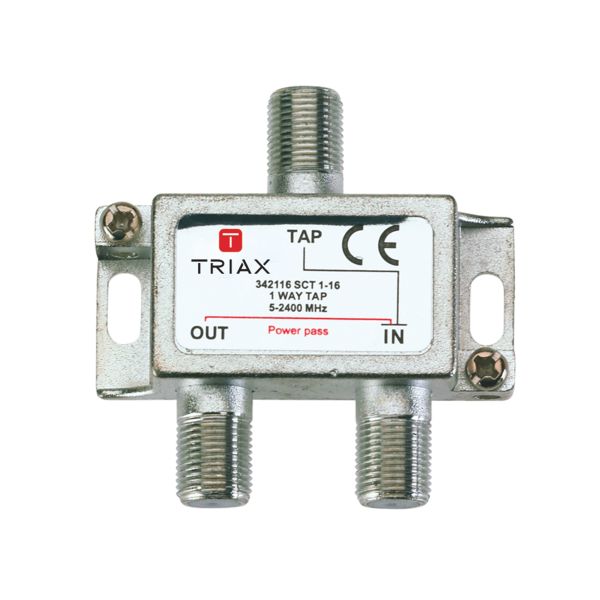

1 Output -16dB Shunt with F Connection

SKU
DERIVADOR116
Brands: TRIAX
€3.73 Tax included
Availability: On request
1 to 7 days

1 Output Derivator and -16dB for DTT and SAT

Economical shunt with 1 input, 1 shunt output and 1 step; with indoor F connectors with approximately 16 dB of branch losses in the entire 5-2400 MHz frequency band (BI / BII / BIII / FM / DAB / UHF / VHF / FI).

Derivator with DC current passage between plants to be able to install amplifiers in the backbone network.

The shunt's brand may vary based on availability.

-
+

Indoor 1-way shunt with 16dB attenuation for DTT and Satellite (5-2400 MHz)

What are the main characteristics of the 1 output and -16dB shunt?

  • F type connectors
  • Frequency band: 5-2400 MHz
  • Entries: 1
  • Step outputs: 1
  • Bypass outputs: 1
  • 16dB of derivation losses
  • Supports DC current passage (only between plants)
  • Indoor installation
  • Top Brand Derivator
More Information
EAN 8401311609531
Hight 0.007
Length 0.002
Width 0.005
DTT System DTT & SAT Distribution
MANUFACTURER SERIES DTT F-connector
Color Silver
TV-SAT Distribution Equipment Diverter
Entorno Interior
TV-SAT Distribution Connection F
Input signal DAB, FI, FM, UHF, VHF
Insertion Loss (dB) 16
Product Brand TRIAX
