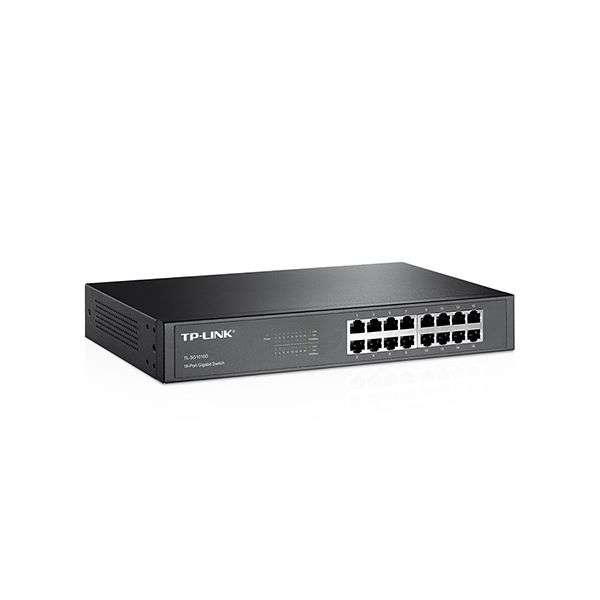

16-port gigabit switch of TPLINK

Name: 16-port gigabit switch of TPLINK
Brand: Tplink
SKU: TL-SG1016D
Price: 72.07 EUR
Availability: InStock

SKU

TL-SG1016D

Brands: Tplink

€72.07 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

16 port switch 10/100 / 1000M

Do you need a switch for your work? The TL-SG1016D Gigabit Ethernet Switch offers you a high performance, low cost, easy to use, seamless and standard solution to upgrade your old network to a 1000Mbps network.

All ports support auto MDI / MDIX so there is no need to worry about the type of cable, just plug and go.

On the other hand, with the innovative technology of energy efficiency, the TL-SG1016D can save up to 15% of energy consumption; and how 80% of the packaging material can be recycled is an eco-friendly solution for your business network.

Details

The TL-SG1016D Switch has all 16 Gigabit RJ-45 ports that provide great file transfer and are also compatible with 10Mbps and 100Mbps Ethernet devices.

What technical characteristics does the TL-SG1016D Switch have?

Innovative energy efficiency technology that saves up to 40% energy
Supports IEEE 802.3x flow control in Full Duplex and Back-Pressure mode in Half Duplex mode
Architecture of switching without blockages for the forwarding and filtering of packets at the maximum cable speed for optimum performance.
32 Gbps switching capacity
Incorporates 10 K of jumbo frame that improves the performance of large file transfers
Automatic MDI / MDIX detection eliminates the need for crossed cables.
Supports automatic learning and expiration of MAC addresses (Auto-Learning and Auto-aging)
Switching function Store-and-Forward
Intelligent hardware integration of 10 Mbps, 100 Mbps and 1000 Mbps thanks to the automatic negotiation of ports.
Simple installation using Plug and Play

What technical specifications does the TL-SG1016D Switch have?

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface	16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity	Fanless
Power Supply	100-240VAC, 50/60Hz
Power Consumption	Maximum: 9.26W (220V/50Hz)
Dimensions ( W x D x H )	11.67.11.7 in. (29418044 mm)

PERFORMANCE
Switching Capacity	32Gbps
Packet Forwarding Rate	23.8Mpps
MAC Address Table	8K
Jumbo Frame	10KB
Green Technology	Yes
Transfer Method	Store-and-Forward

OTHERS
Certification	FCC, CE, RoHs
Package Contents	16-Port Gigabit Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

More Information

More Information
EAN	6935364020613
Hight	0.410
Length	0.080
Width	0.250
REDES - System	NOT POE
REDES - SERIE	16 Ports
Color	Black
Network Equipment	Switch
Ports	16
Data Speed	Gigabit (10/100/1000Mbps)
PoE	No
Product Brand	Tplink
