1Gbps RJ45 Cable - SC/APC Fiber Optic Converter 15km

SKU
TL-MC210CS
Brands: Tplink
Availability: Out of stock
Consult

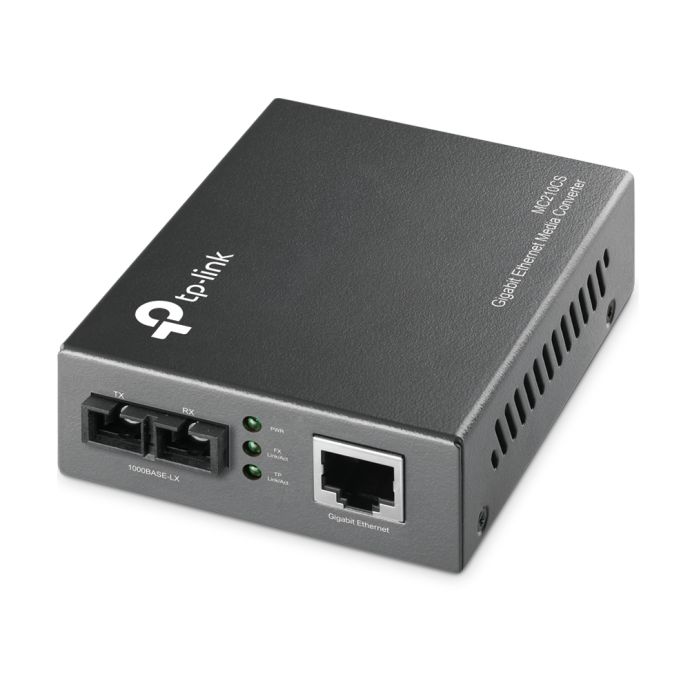

1Gbps RJ45 Cable to SC/APC or Vicersa Fiber Optic Converter, Tp-Link MC210CS

Transmitter/receiver equipment to convert SC/APC single-mode fiber optic cable to 10/100/1000Mbps RJ45 copper cable, or vice versa. It works at the 1310nm wavelength for both data transmission and reception.

Tp-Link's MC210CS offers solutions for 1000BASE-T copper networks that require long-distance links that only fiber can support. The MC210CS allows you to extend the data transmission distance up to 15 kilometers, at 1Gbps, when using single-mode fiber optics.

It can also be used to make connections through very congested pipes or with a lot of electrical noise, since the optical fiber has a smaller diameter and is also totally immune to interference.

Two equal MC210CS are required to transmit and receive the data.



10/100/1000Mbps RJ45 Ethernet Cable to SC/APC Singlemode Fiber Optic Converter or Vice Versa, up to 15km

What technical specifications does the Tp-Link MC210CS FO Converter have?

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic Function Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 20km
Ports 1× 1000M SC/UPC port
1× 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length 1310nm
Network Media 1000BASE-LX Single-mode Fiber
Network Media 1000BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External Power Adapter
Max Power Consumption 1.8W
Safety & Emission FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
More Information
EAN 6935364030445
Hight 0.170
Length 0.060
Width 0.200
Color Black
Product Brand Tplink
FO Distribution FO Converter
Entorno Interior
