1Gbps RJ45 Cable - SFP Optical Port Converter Tp-Link

SKU
TL-MC220L
Brands: Tplink
Availability: Out of stock
Consult

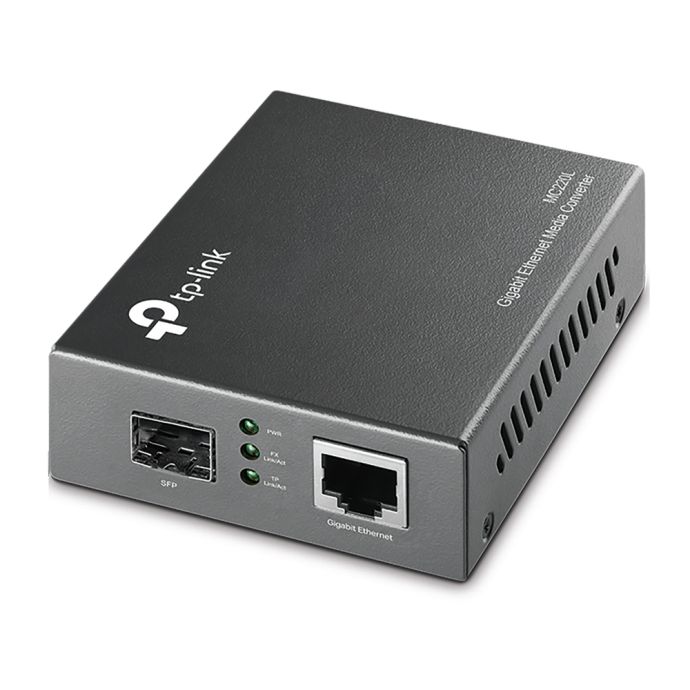

1Gbps RJ45 Cable to SFP Port or Vice Versa Converter, Tp-Link MC220L

Media converter equipment from copper RJ45 (10/100/1000 Mbps) to fiber optic through SFP module, or vice versa. Extend the distance of an existing gigabit Ethernet network over fiber optic cable by inserting an SFP module.

The MC220L converter allows long-range point-to-point connections (kilometers), for example to connect networks of several buildings and large areas such as factories or urban complexes. The maximum transmission distance of the fiber depends on the SFP module that is inserted.

The fiber, in addition to traveling long distances without attenuation, is totally immune to electrical interference, so it is also the best solution for routes with a lot of noise, such as industrial areas.

We recommend its use with Tp-Link's TL-SM321A and TL-SM321B SFP modules.



Gigabit Ethernet RJ45 10/100/1000Mbps Media Converter to SFP Optical Port or Vice Versa

What technical specifications does the Tp-Link MC220L FO Converter have?

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic Function Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Maximum transmission distance depends on the inserting SFP module
Ports 1 1000M SFP port
1 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length Depends on the used SFP module
Network Media 1000BASE-X Multi-mode/Single-mode SFP module
Network Media 1000BASE-T UTP category 5, 5e cable (maxium 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External Power Adapter
Max Power Consumption 1.7W
Safety & Emission FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
More Information
EAN 6935364030476
Hight 0.210
Length 0.070
Width 0.170
Color Black
Product Brand Tplink
FO Distribution FO Converter
Entorno Interior
