2 Wires IKALL Audio Unit for Remote Camera

SKU
COM1621VC
Brands: Comelit
€357.23 Tax included
Free shipping
(Iberian Peninsula)
Comelit
Availability: On request
1 to 7 days

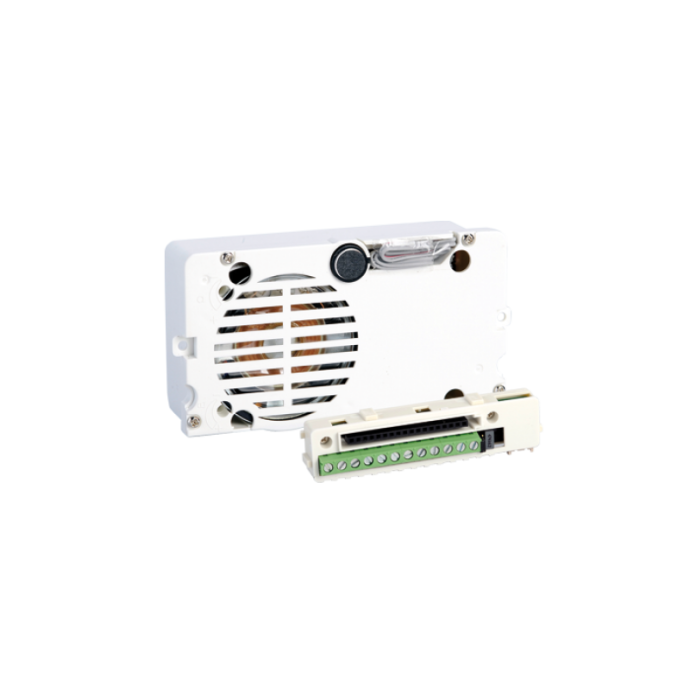

Comelit 1621VC 2 Wires IKALL Audio Unit for Remote Camera

Speaker unit for 2-wire systems complete with terminal block and audio control with echocancelling, sealed-unit loudspeaker, electret microphone and front-mounted loudspeaker volume control.

Allows use of external PAL colour cameras. Complete with microprocessor and 8-position dip switch for programming calls to users. On-board electronic lock-release function (3A) plus C, NC, NO contacts for 10A relay. Timed lock-release input and door open indication.

Compatible with power supply unit art. 1210. Dimensions: 102x55x38 mm.

Comelit 2 Wires IKALL Audio Unit for Remote Camera

What technical specifications does the Comelit 1621VC Unit have?

MAIN FEATURES

  • Clamps: L L V+V- RTE DO GND SE- SE+COM NC NO
  • Microphone: Yes
  • Loudspeaker: Yes
  • Operating temperature (°C): -25 ÷ 55
  • Operating humidity (% RH max): 95

GENERAL DATA

  • Height (mm): 55
  • Width (mm): 102
  • Depth (mm): 38

COMPATIBILITY

  • Building Kit audio/video system: Yes
More Information
EAN8023903300420
Hight0.120
Length0.060
Width0.100
ACCESOS - SISTEMASimplebus (2 threads)
ACCESOS - SERIEIKALL
ColorWhite
Color Portero/VideoporteroSolo Audio
TypeAccessories
Product BrandComelit
