24-port 10 / 100Mbps switch for 19 "rack from TP-Link

SKU
TL-SF1024
Brands: Tplink
€66.74 Tax included
Availability: In stock
24/48 Hours

24 port 10 / 100Mbps switch

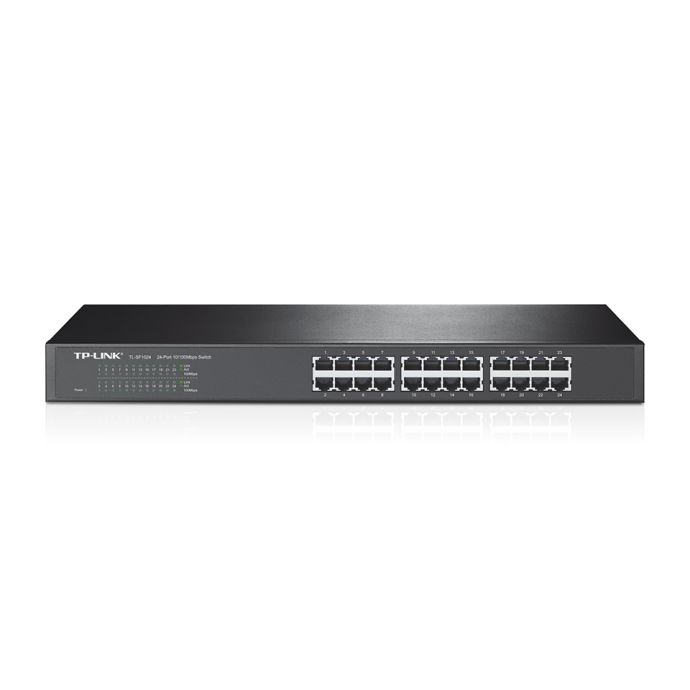

The TP-Link TL-SF1024 Switch is a 19 "Rack cabinet switch that provides high performance, low cost, easy to use and upgraded according to the standard to improve your old network.

The 24 ports support MDI / MDIX auto, so there is no need to worry about the type of cable, simply connect and go.

On the other hand, with the innovative energy efficiency technology, it saves up to 75% of energy consumption. In addition, 80% of the packaging material can be recycled.

-
+

The TL-SF1024 operates and filters packets at a high wire speed for maximum performance.

What technical characteristics does the TL-SF1024 switch have?

  • 24 RJ45 ports at 10/100 Mbps
  • Innovative energy efficiency technology that saves up to 75% energy
  • Supports MAC address learning (Auto-Learning) and automatic MDI / MDIX
  • 19-inch standard metal housing

What technical specifications does the TL-SF1024 switch have?

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)
Mounting Rack Mountable
Max Power Consumption 3.19W(220V/50Hz)
Max Heat Dissipation 10.88BTU/h
PERFORMANCE
Switching Capacity 4.8Gbps
Packet Forwarding Rate 3.57Mpps
MAC Address Table 8K
Buffer Memory 2Mb
Green Technology Innovative energy-efficient technology saves power up to 75%
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents 24-Port 10/100Mbps Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
System Requirements Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
More Information
EAN 6935364020057
Hight 0.200
Length 0.400
Width 0.080
System NOT POE
SERIE 24 Ports
Color Black
Network Equipment Switch
Ports 24
Data Speed Fast Ethernet (10/100Mbps)
PoE No
Product Brand Tplink
