4 in 1 Turret 2Mpx Fixed 2.8mm IR 20m Turret Camera ColorHunter

SKU
UV-UAC-T112-F28-W
Brands: Uniview
Availability: In stock
24/48 Hours

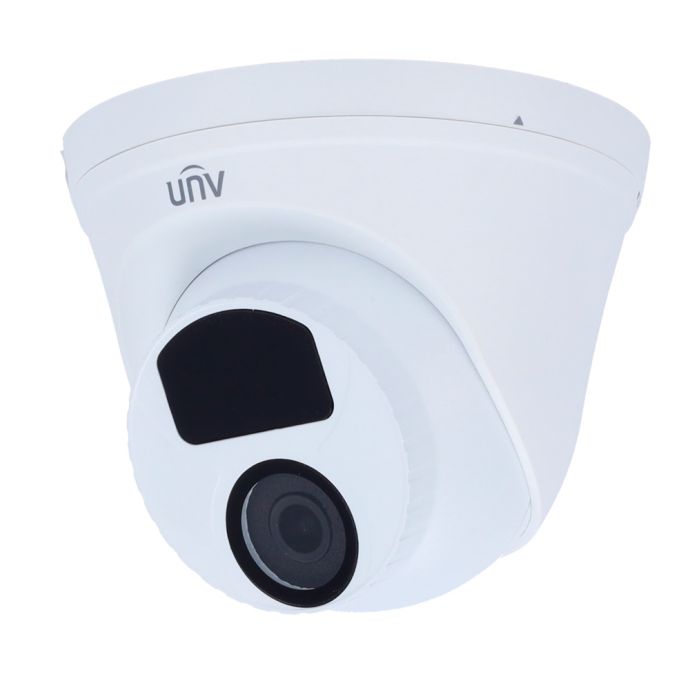

4 in 1 Turret type camera with 2 MPx and a 2.8mm lens.

2MPx (2880x1620) Analog 4 in 1 Turret Camera. It has fixed 2.8 mm optics and an infrared range of up to 20 meters. As it has an IP67 waterproof protection rating, it is suitable for outdoor use.

The video outputs are: TVI, AHD, CVI and CVBS.

Some of the features of this camera are: white light, so it has contrast and sharpness adjustment, ease of use and noise reduction.

Its dimensions are 118mmx96mm.

Contents:

- Analog camera.

- Material for its installation.

- Instructions for its operation.

Its weight is 205 g.

Technical Specifications of the 4 in 1 Turret Camera with 2MPx IR 20m

Range

Uniview

Image sensor

1/2.7” Progressive Scan CMOS

Maximum resolution

2MP

Main Stream rate

1080p (1920x1080)

Extra Stream rate

720p (1280x720)

Lens

2.8 mm

Minimum illumination

0.02 Lux (Colour)

Infrared range

20 m

White Light

Yes

Image improvements

BLC, HLC, DWDR, DAY/NIGHT MODE, 2D. DWDR. SMART IR

Day / Night

Mechanical ICR filter

Power

DC 12V / 2.04W

Video output

TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVBS: PAL, NTSC

Temp. operation

-30º C ~ 60º C

Degree of protection

Weatherproof IP67

Dimensions

Φ118mm*96mm

Weight

205 g

More Information
EAN 8435325471525
Hight 0.200
Length 0.200
Width 0.200
System Hibrid
SERIE Turret
Technology AHD, Analogic CVBS, HD-CVI, HD-TVI
Color White
Tipe Domo
Entorno Exterior
Resolution 2MP ~ 1080p
Optics Fixed
Product Brand Uniview
