4 IP Cameras NVR Recorder 8MP 4K H.265+ Hikvision

SKU
HWN-4104MH
Brands: Hikvision
€92.32 Tax included
Availability: On request
1 to 7 days

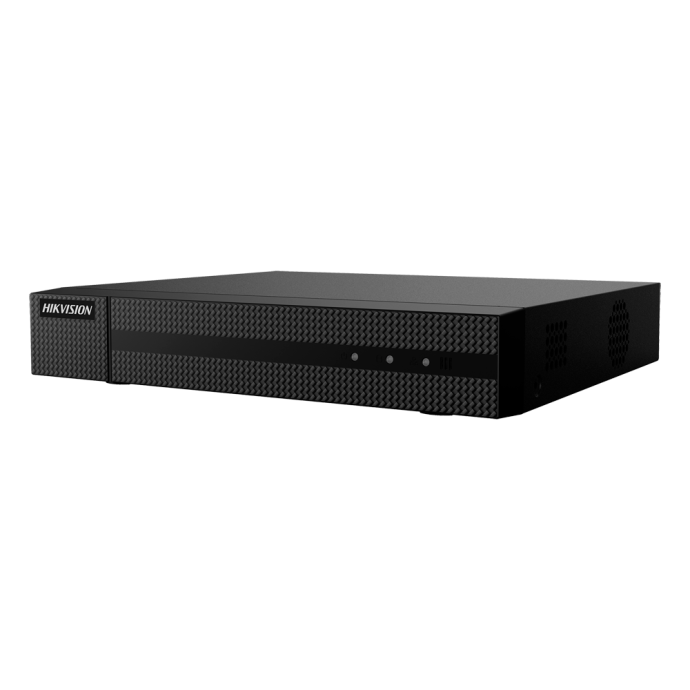

NVR Recorder 4 Channels IP 8MP H.265+ Hikvision HWN-4104MH

NVR video recorder for 4 IP cameras with a maximum resolution of 8 Megapixels and H.265+ compression, 40Mbps bandwidth supported, HDMI 4K and VGA output.

This recorder supports 1 HDD hard disk up to 6TB (not included). It incorporates 2x USB 2.0 ports and 10/100/1000Mbps RJ45 Gigabit Ethernet port. Dual Stream IP access: high quality stream for hard disk storage while having another lighter stream to transmit over the network.

This recorder allows remote access from web browser, IVMS 4500 smartphone app and IVMS 4200 PC software.



-
+

Video Recorder NVR 4 Channels IP max. 8MP H.265+, HDMI 4K and VGA outputs

What technical specifications does the Hikvision HWN-4104MH NVR Recorder have?

Brand Hikvision
Range HiWatch Series
Inputs for IP cameras LAN port up to 4 channels
IP compatible cameras HIKVISION, ONVIF
Bidirectional audio 1 input / 1 RCA output
Video outputs 1 HDMI 4K, 1 VGA
Video compression format H.265+ / H.265 / H.264+ / H.264
Display resolution 3840x2160, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Total bandwidth 40 Mbps downstream / 80 Mbps upstream
Main Stream recording 8MP/6MP/5MP/4MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms No
Recording method Manual, programmed, motion detection, alarm
External Backup USB memory / HDD USB / CD-RW USB / DVR-RW USB
Internal memory 1 SATA HDD 3.5" of up to 6 TB (not included)
Communication 2 x USB 2.0 / 1 x RJ45 10/100/1000 (Ethernet)
Remote access Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200
Power DC 12 V, 50/60 Hz
Dimensions / Weight 48 (H) x 315 (W) x 240 (D) mm / 1.0 Kg (without HDD)
More Information
EAN 6941264083108
Hight 0.270
Length 0.080
Width 0.400
SECURITY - SYSTEM IP
SERIE 8Mpx
Included Mouse, Power supply
Event notifier No
No. CCTV Recorder Inputs 4 IP
Audio in ports 1
Product Brand Hikvision
