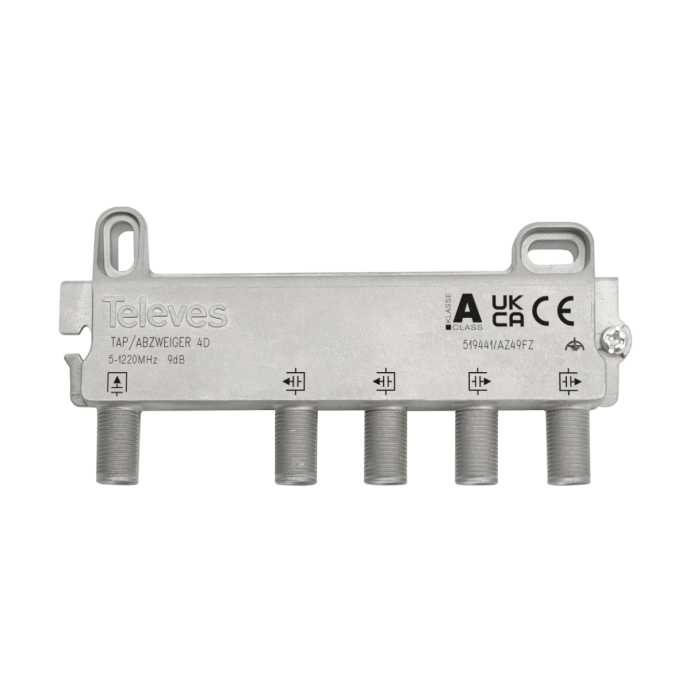

4 Output Splitter CATV Terminal F Connector 9dB from Televes

Televes 4 Outputs CATV Terminal Shunt F 9dB Connector

4 output F type shunt with 9dB attenuation for terrestrial signals (5-1220 MHz), compatible with Docsis 3.1 coaxial cable data technology. It does not include DC power pass-through.

What is a terminal shunt? It is a shunt that is used at the end of the line, as it does not have a shunt output to another plant. It is apparently similar to a 4-outlet distributor, but there is an important difference: the outlets have current blocking and do not allow current to pass in any of their outlets and directions, neither from the outlet to the inlet nor vice versa. This makes it possible to protect the rest of the outlets from possible current shunts that may occur in the users' internal network.

This shunt is used in indoor installations, for wall, rack or standard DIN rail mounting.

It has a high efficiency, comes with a chassis made of zamak, which provides a great shielding. It is compatible with DOCSIS 3.1, which is an international standard that defines the requirements needed to achieve the highest possible speed in data transmission over cable networks.

This shunt is not suitable for satellite signal distribution.
