5'' Wifi Color Monitor Class 100XE 8 (2 Wires) by BTicino

SKU
TEG344786
Brands: Bticino
€256.91 Tax included
Free shipping
(Iberian Peninsula)
Bticino
Availability: On request
1 to 7 days

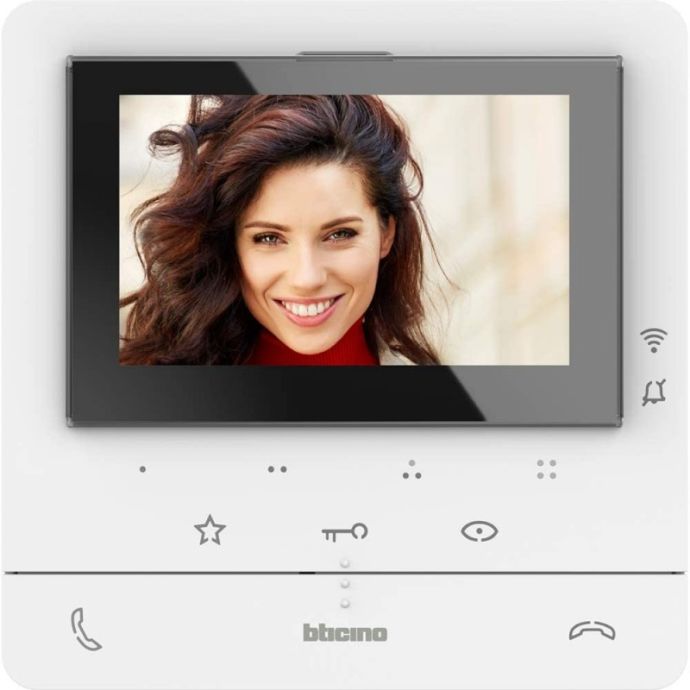

Bticino 5” Color WiFi 100X16E Monitor

Hands-free video intercom monitor. It has a 5” full color LCD screen. The monitor works with a 2-wire intercom system. It has WiFi, so it allows you to use the video intercom through the Door Entry APP with your mobile phone, in an easy and intuitive way. Through the APP we can manage the most important functions of the video intercom such as receiving calls, opening the door, activating the exterior panel, updating the FWR...

It has two buttons that we can use for the video intercom functions (answer and close the call). It also has seven capacitive buttons with other functions (activate the exterior panel, activate the remote control/light/stairs, open the lock, activate the additional lock, etc.). The monitor has a lever on its side to regulate the color, brightness, contrast, etc.

The monitor can be installed on the wall or on a stand (not included).

Technical Specifications of the 5” Color WiFi 100X16E Monitor from Bticino

Reference

LEG3T344786

Data sheet

Dimensions

165 x 164 x 20.5mm

Feeding

18 - 27 Vdc

Operating temperature

5 - 40ºC

Installation System

2 Tegui Strands

Maximum SCS Consumption In Stand By

37 MA

Maximum SCS Absorption in Operation

400MA

Maximum Cable Section

2 X 1 Mm2

Security Protocol

WEP/WPA/WPA2

Color LCD Screen

5 inches

More Information
EAN8005543740163
Hight0.210
Length0.045
Width0.210
ACCESOS - SISTEMA2 Threads
ACCESOS - SERIEWiFi
ColorWhite
Color Portero/VideoporteroColor
TypeMonitor
Product BrandBticino
