60cm Dish , Support, Universal LNB, PP-30, Cable and Connectors Kit

SKU
TECK60C1LSCC
Brands: Tecatel
€30.82 Tax included
Availability: In stock
24/48 Hours

60cm Satellite Dish Kit with Support, Universal LNB, 25m Coil and Connectors

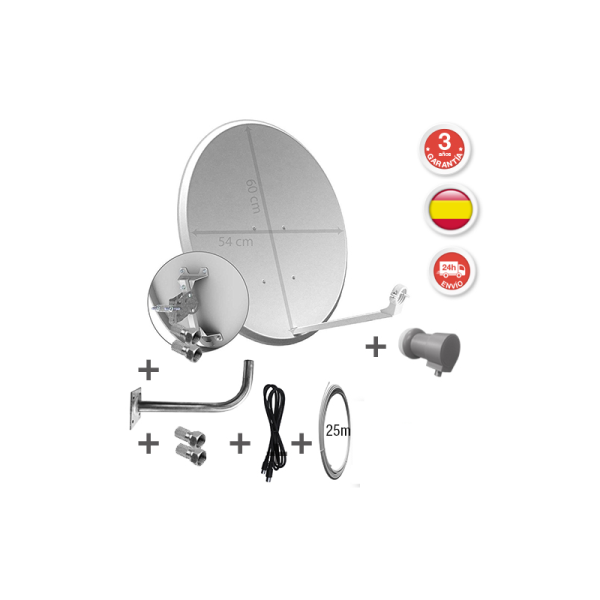

Kit consisting of a 60cm satellite dish, support for the L-shaped antenna to place it on the wall, Tecatel Universal LNB, 25-meter coil of coaxial cable. It also includes a free IECM/H cable.

With this kit you will be able to receive the Astra 19ºE satellite signal throughout the peninsula.

The antenna is made of electro-galvanized steel and polyester paint, which makes it highly resistant to atmospheric conditions. The LNB is universal Illusion offset. 2 professional F-type connectors are included. The support is L-shaped, easy to assemble. A 25 meter long reel of high quality coaxial cable is included in the kit.

It also includes all the necessary screws for the installation of the antenna.

-
+

Technical Specifications of the 60cm Satellite Dish Kit with Support, Universal LNB, 25meter Coil and Connectors

What technical specifications does the K60C1 Antenna have?



Medidas (mm.)
Dimensions (mm.)

600 x 540

Ø Máximo mástil. Ømax. Mast.

50 mm

*Resistencia al viento
Wind resistance

180 km/h

Abrazadera LNB
LNB Bracket

Ø 40

Azimut pared / mástil Wall / mast Azimuth

180º / 360º

Ganancia a 12.5GHz.
Gain at 12.5GHz.

36.1 dB

Relacion F / D
F / D ratio

0,55

Distancia focal
Focal distance

330 mm

Eficiencia Eficiency

80%

X Polarización
X Polaritation

>27 dB

Ancho de haz
Beamwidth

3,00

Elevación Elevation

10º - 90º

Material: Disco / Componentes Dish / Components material

Acero electrozincado / Galvanizado Zinc electroplated steel / Galvanized

Tratamiento de la superficie
Superficial finishing

Epoxi-poliéster / Galvanizado
Epoxi-polyester / Galvanized



What technical specifications does the Universal offset LNB have?

Guía de ondas
Feed hom
F/D=0.615 a 11.7 GHz
Frecuencia de entrada Input frequency Banda baja / Low band: 10.7 ÷ 11.7 GHz Banda alta / High band: 11.70 ÷ 12.75 GHz
Frecuencia del oscilador local Local oscilator frequency Banda baja / Low band: 9.75 GHz Banda alta / High band: 10.6 GHz
Frecuencia de salida Output frequency Banda baja / Low band: 950 ÷ 1950 MHz Banda alta / High band: 1100 ÷ 2150 MHz
Nº de salidas Number of outputs 1 (universal / universal)
Ganancia Gain 58 dB
Impedancia Impedance 75 Ω
Figura de ruido
Noise figure
0.3 dB
Aislamiento entre polarizaciones
Cross polar discrimination
22 dB
Alimentación y señales de control
Supply voltage and control signals
14 ÷ 18 V, 22 kHz
Rango de temperatura de trabajo
Operating temperature range
-40 ÷ 70 ºC
Consumo de corriente
Current consumption
90 mA max.
Tipo de conector de salida
Output connector
“F” Hembra / Female
More Information
EAN 8430549043343
Width 0.670
Hight 0.590
Length 0.090
System SAT SAT Reception
MANUFACTURER SERIE SAT Kit
Size 30 cm to 65 cm
Type Offset
Orientation Manual
Material Steel
LNB included No
Product Brand Tecatel
