UAP Splitter EasyF 4D 9dB Televes

SKU
TEL544902
Brands: Televes
€13.95 Tax included
Televes
Availability: On request
1 to 7 days

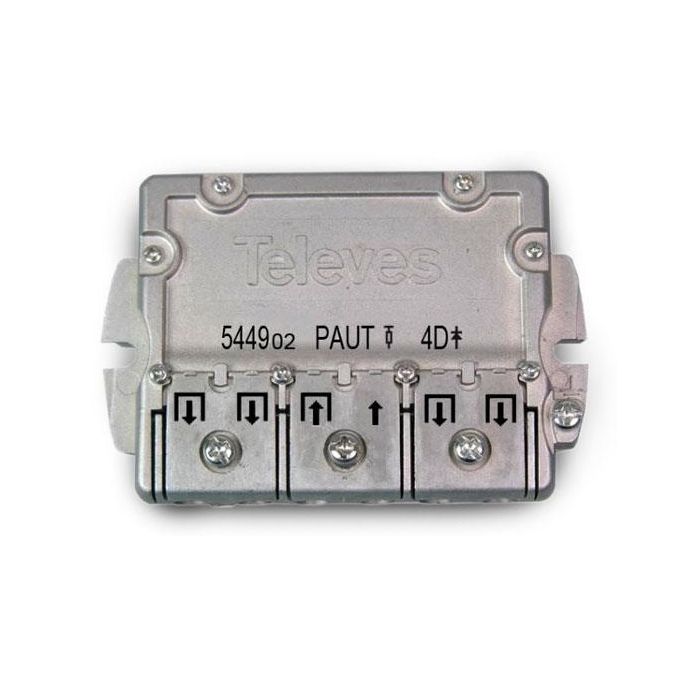

4-way EasyF UAP Splitter Televes 544902

Televes brings us this 4-way splitter + UAP with the EasyF connection system, which facilitates installation and saves costs by not using connectors. The team has a 9dB antenation for UHF and only 7.5dB for Satellite. It has a DC current path.

The User Access Points are used for TV installations made according to the ICT regulation. That is why these have an extra loaded input, to connect the second downspout. The function is this PAU is to distribute the DTT-SAT signal up to 4 outlets in the house.

Equipment designed to be installed indoors, with the possibility of installing outdoors inside a small 4177 Televes box.

Technical Specifications of the Televes 544902 PAU Distributor

Frequency range MHz 5-2400
5-862 950-2400
Number of outputs 4
Through loss S1/S2 dB 9 7,5
S3/S4
S5/S6
S7/S8 - -
Tap loss >15
DC Pass (max.) mA 300 (in.↔out.)
More Information
EAN8424450143803
Hight0.153
Length0.088
Width0.064
DTT SystemDTT & SAT Distribution
SERIES DTTBrida Connector
ColorSilver
TV-SAT Distribution EquipmentUAP
EntornoInterior
TV-SAT Distribution ConnectionFlange
Outputs4
Input signalDAB, FI, FM, UHF, VHF
Insertion Loss (dB)9
Current bypassYes
Product BrandTeleves
