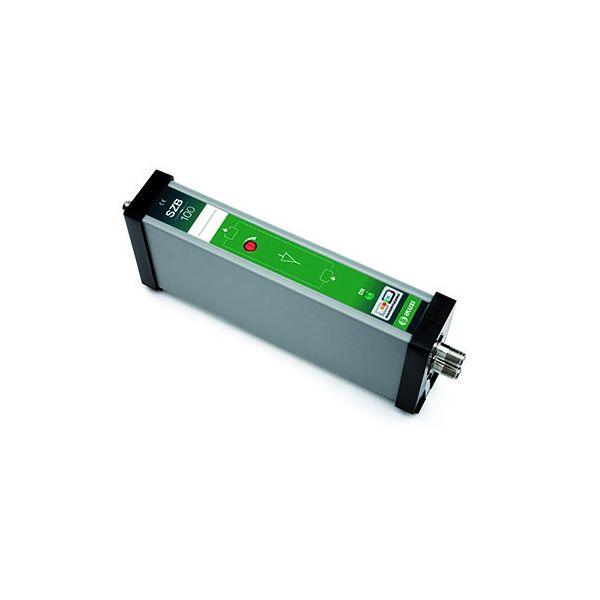

Amplifier single channel UHF, SZB series

SKU
IKU2246
Brands: Ikusi
€71.28 Tax included
Availability: In stock
24/48 Hours

Single-channel amplifier UHF of the SZB series by Ikusi.

The single-channel amplifier 2246 has optimized manufacturing processes by providing finer adjustments to achieve high selectivity and flatness. Demultiplexing Z input and multiplexing Z output. Adjacent channel amplification in the UHF band.

It also incorporates amplifiers for FM and DAB radios.

The single-channel amplifier UHF 2246 of the Ikusi brand has a connection via F connectors, its assembly is quite fast, since it is carried out on the base or wall mounting bracket.

NOTE: Indicate the desired channel in the observation field at the time of placing the order.

-
+

The Ikusi 2246 single-channel amplifier is from the SZB series and allows the amplification of a DTT channel.

What technical characteristics does the 2246 amplifier have?

  • The manufacturing processes have been optimized, providing finer adjustments to achieve high selectivity and flatness.
  • Demultiplexing Z input and multiplexing Z output. Adjacent channel amplification in the UHF band.
  • Amplifiers FM and DAB radios.
  • In an SZB station it is convenient to order the amplifiers in increasing order of channel. The exit is taken from the last of them.
  • Specially designed for the joint amplification of analog and digital channels.
  • Feeders from the alternate network. Output voltage +24 VDC automatically connected to the RF modules through the built-in contact bar in the base-support.
  • Mounting without tools on wall mounting brackets.

What technical specifications does the 2246 amplifier have?

  • Covered band: 1 UHF channel
  • Gain: 52 dB
  • Noise figure: 9 dB
  • Output level: 121 dBuV
  • Return loss: dB ≥ 6
  • Consumption: 100 mA
  • Dimensions mm 190 x 38 x 87
More Information
EAN 8435136422464
Hight 0.000
Length 0.000
Width 0.000
DTT System DTT Amplifier
MANUFACTURER SERIES DTT SZB
Color Gray
Type Single channel amplifier
Entorno Interior
# Inputs 2
Outputs 2
Gain 52
Max. output level Ganancia (dB/uV) 126
LTE compatible No
Current bypass Terrestrial
Product Brand Ikusi
