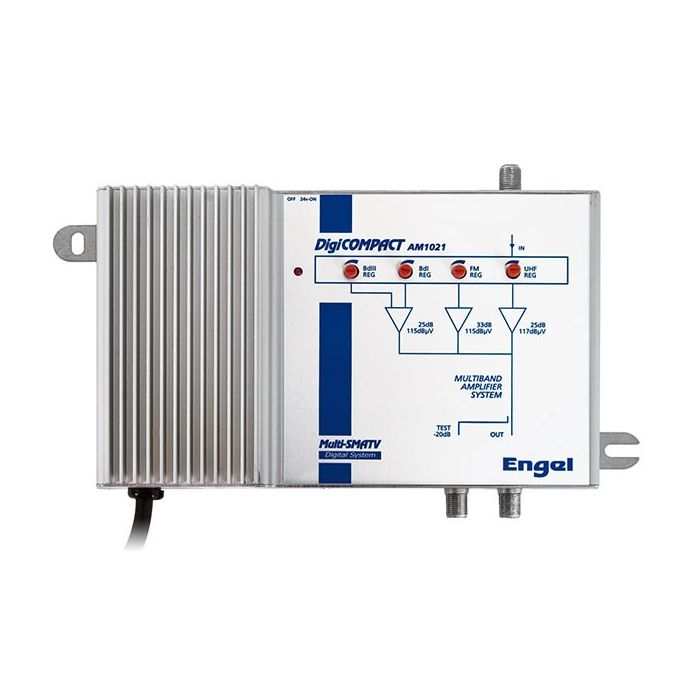

Engel DIGI-COMPACT Broadband Amplifier VHF/UHF 25dB

SKU
ENGAM1021
Brands: Engel Axil
€66.17 Tax included
Availability: In stock
24/48 Hours

DIGI-COMPACT Multiband Amplifier 1 input VHF/UHF Engel AM1021

Broadband amplifier for medium and small collective terrestrial TV distributions. Ideal for head-end amplifier and as a downstream reamplifier.

It has 1 input and independent amplification for each band (BI-BIII-FM-UHF). High gain and output level: with 25dB for VHF/UHF and 33dB for FM; maximum output level 117 dBμV. Manually adjustable gain via integrated attenuator.

This control unit allows to supply 24Vdc pre-equipments such as a mast amplifier or active UHF antenna. It also has a test output (-30dB) to carry out checks without interrupting the service to users.



-
+

DIGI-COMPACT Broadband Amplifier 1 input VHF/UHF/FM, 25/33dB, 117dBμV

What technical specifications does the Engel AM1021 Multiband Amplifier have?

  • Central broadband V/UHF, 25/33 dB, 117 dBµV
  • Compact broadband amplification panels (V/UHF) for medium and small collective installations
  • Ideal for amplifying analog and digital TV
  • Locatable in the headboard and as a downstream or extension reamplifier
  • High gain and output level with very good distortion
  • Separate FM-VHF-UHF amplification with independent regulation for each sub-band
  • 24Vdc power supply
  • 230Vac mains supply
More Information
EAN 8413173043224
Hight 0.250
Length 0.080
Width 0.140
DTT System DTT Amplifier
MANUFACTURER SERIES DTT F-connector
Color Gray
Type Broadband station
Entorno Interior
# Inputs 1
Outputs 1
Gain 25
Max. output level Ganancia (dB/uV) 117
LTE compatible No
Current bypass Terrestrial
Product Brand Engel Axil
