Central Broadband UHF-VHF-FM 34dB LTE 5G

Name: Central Broadband UHF-VHF-FM 34dB LTE 5G
Brand: Terra
SKU: TERMA049T
Price: 87.33 EUR
Availability: InStock

SKU

TERMA049T

Brands: Terra

€87.33 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

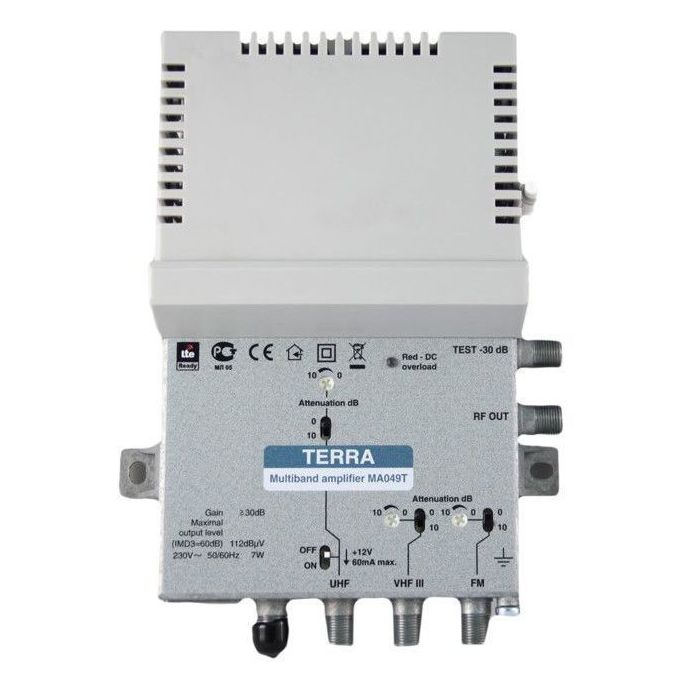

Central Multiband UHF-VHF-FM 34dB LTE 5G Terra MA049T

Terrestrial broadband amplifier with 3 inputs (UHF-VHF-FM) and 1 output. It offers 34dB gain for UHF and 30dB for VHF-FM, all adjustable 0..20dB, with a maximum output of 115dBμV.

Equipment adapted to the 2nd Digital Dividend thanks to the integrated LTE filter to reject the 5G band that will start broadcasting in 2021. This control unit allows powering previous equipment or active DTT antennas thanks to the 12V and 60mA it supplies.

The amplifier has a dimensions of 135x180x52mm with the integrated power supply. Its size facilitates installation in indoor TV distribution boards.

Details

34dB Terrestrial Broadband Amplifier (UHF-VHF-FM) with integrated 5G LTE filter

What technical specifications does the Terra MA049T Amplifier have?

Reference: MA049T
Number: 03501T
Gain:

FM (88-108 MHz): 30 dB
VHFIII (174-230 MHz): 30 dB
UHF (470-694 MHz): 34 dB

Number of entries: 3
Noise figure:

VHF: <6 dB
UHF: <5 dB

Output level: IMD3 = 60 dB (DIN45004B) 115 dBμV, IMD3 = 60 dB 112dBμV
Gain regulation: 0..20 dB
Return loss:> 10 dB
Test output: - 30 dB
External DC power supply: 12 V 60 mA max.
Consumption: 230 V ~ 50/60 Hz 7 W
Operating temperature: -20º + 50º C
Dimensions / Weight: 135x180x52 mm / 0.72 kg

More Information

More Information
EAN	8403104900016
Hight	0.200
Length	0.070
Width	0.150
DTT System	DTT Amplifier
MANUFACTURER SERIES DTT	F-connector
Color	White
Type	Broadband station
Entorno	Interior
# Inputs	3
Outputs	1
Gain	34
Max. output level Ganancia (dB/uV)	112
LTE compatible	No
Product Brand	Terra
