The amplifier 532401 allows to enter the signal of a parabolic in the existing DTT installation. That is, in neighboring communities where there is already a central for DTT, this central and a parabolic antenna is added and a satellite signal can be added to the installation, using the existing wiring.
The amplifier 532401 is very common to use it for Astra 19.2ºE, where it is Movistar +, and to configure it with local power in 12Vc, and tone 0Khz, so that the LNB is fixed in the low vertical polarity and in this way the signal of Movistar + In the entire community.

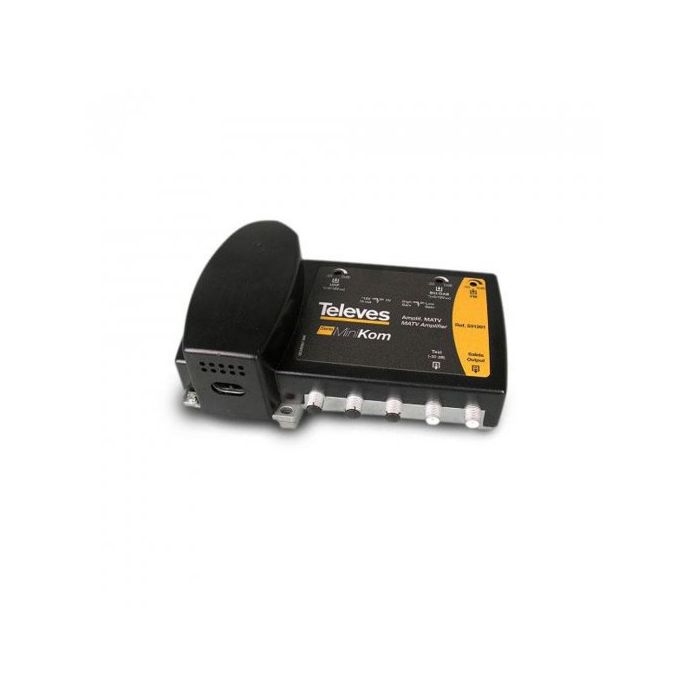

The Televes amplifier 532401 is a broadband amplifier housed in a zamak cabinet that allows us to mix the FI signal in the existing DVB-T cabling.
What technical characteristics does the amplifier 532401 have?
input
2 (VHF/UHF)
Amplified Band
950 - 2150
Gain
VHF/UHF
dB
-1,5
FI
35 - 45
Output level
VHF/UHF
dBµV
-
FI
124 DIN V VDE 0855/12
Noise figure
VHF/UHF
dB
-
FI
<9
Gain regulation
dB
20
Equalizer
0 - 12
Max. Step line
mA
300 (E) (13 / 17 Vdc)
Tone 22 KHz
0,65 VPP (E)
AC power supply
Vac
184 - 265
Consumption AC
w
14
Consumption DC (a 24 Vac)
mA
-
Dimensions
mm
180x110x55
What is Televes 532401 used for?
This central is used to perform the installation of Movistar + in a community in which there is already an existing DTT installation.
This unit is very convenient to install since it has two inputs, one for the existing DTT installation, which does not amplify, only receives and mixes with the signal coming from the FI input, if it is amplified. This signal is mixed by the outlet type F connector and reaches all the houses in the building.
