Coaxial Cable Cu/Cu Euroclass Dca Indoor (100m)

SKU
TEL214110B
Brands: Televes
€94.69 Tax included
Availability: In stock
24/48 Hours

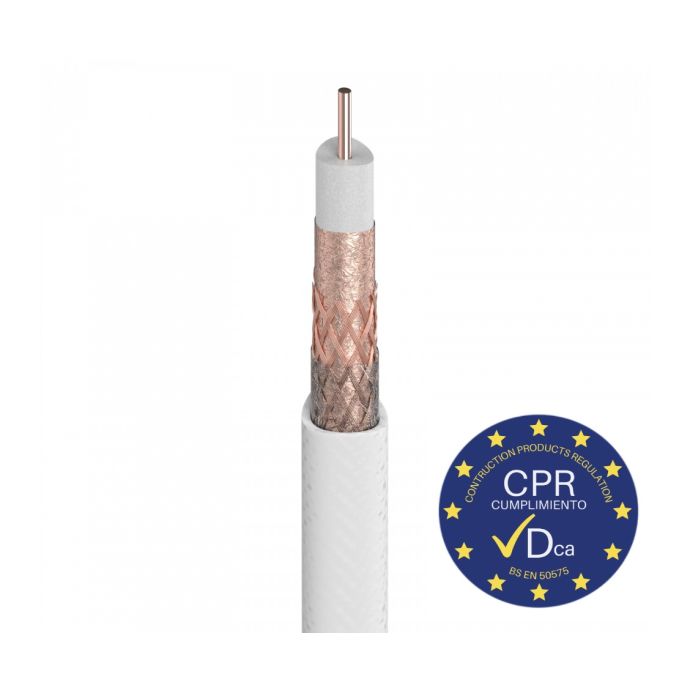

Coaxial Cable T100plus Cu/Cu Euroclass Dca LSFH Televes 214110 (100m)

100 meter indoor coaxial cable, made with copper conductor and mesh (Cu/Cu) and white LSFH halogen-free cover.

Classified as Euroclass Dca cable due to its reaction to fire in the event of fire: reducing the production of fumes, heat and its lower flame spread. Its 2 layers of shielding Class B give it good resistance to interference in the event of electromagnetic noise.

Excellent response throughout the frequency band thanks to its 100% Copper composition.

-
+

T100plus Cu/Cu Coaxial Cable with LSFH sheath for Indoor, double shielding Class B and Euroclass Dca

What are the main characteristics of the Televes 214110 Coaxial Cable?

  • Copper conductors
  • Dca-s2,d2,a2 Euroclass
  • The anti-migrating film prevents sheath's additive agents and humidity migration to the inner cable, thus avoiding deterioration in the characteristics
  • White-colour external LSFH sheath
  • 75 Ohm characteristic impedance
  • 100 m plastic reel

What technical specifications does the Televes 214110 Coaxial Cable have?

Type T100plus
Standard EN 50117-2-4
EuroClass Dca-s2,d2,a2
Class B
Inner conductor Ø mm 1,13
Material CU
Res. Ohm/Km <20
Dielectric Ø mm 4,8
Material PEE
Overlapped foil Copper + Polyester
Braid Material Cu
Dimensions (Ncx Nsx Ø) 16 x 4 x 0.10
Res. Ohm/Km <20
Coverage % 38
Anti-migrating film Yes
Petrol-Jelly No
Outer sheath Ø mm 6,6
Material LSFH
Minimum bending radius mm 33.5
Screening attenuation @ 1GHz dB >75
Capacitance pF/m 55
Impedance Ohm 75
Transfer impedance (5-30MHz) mOhm/m ≤15
Velocity ratio % 82
Attenuations (dB/m)
Frequency (MHz)
5 0,01
47 0,04
90 0,05
200 0,08
500 0,13
800 0,16
1000 0,19
1350 0,22
1750 0,25
2050 0,26
2300 0,3

More Information
EAN 8424450212158
Hight 0.000
Length 0.000
Width 0.000
System DTT RG6
Serie 100m
Entorno Interior
Color White
Cobertura Exterior Cables LSFH
Conductor Interno Cables Copper (Cu)
Material Malla Coaxial Copper (Cu)
Product Brand Televes
