Combined FM/DAB Antenna x2 F 1dB Connectors from Ekselans

Name: Combined FM/DAB Antenna x2 F 1dB Connectors from Ekselans
Brand: EKSELANS
SKU: EK012003
Price: 62.92 EUR
Availability: InStock

SKU

EK012003

Brands: EKSELANS

€62.92 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

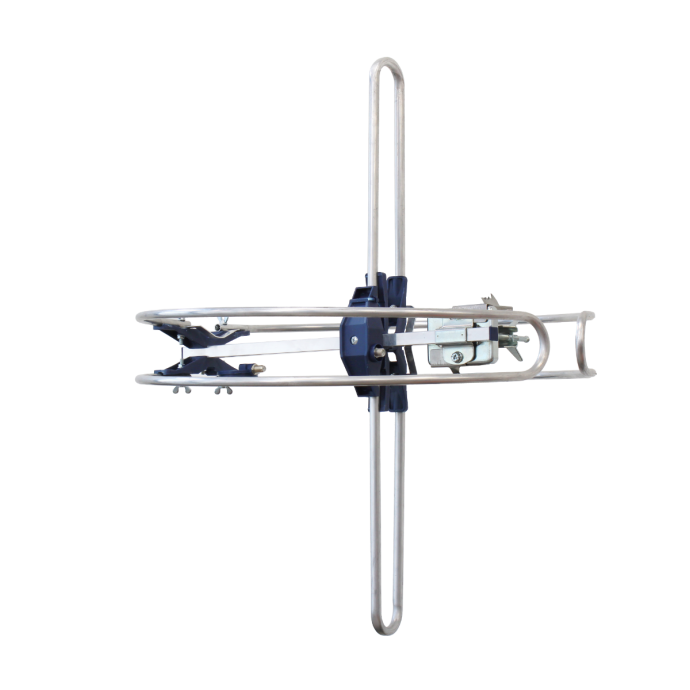

Combined FM/DAB Antenna x2 Ekselans F 1dB Connectors

We present this unique antenna that combines both FM and DAB reception. The antenna has two boxes and two independent F connectors.

On the one hand, we find the FM antenna, circular omnidirectional con 1 dB gain. It has a box with connector F. It operates in the frequency band from 87.5 to 108MH with horizontal polarization.

On the other hand, the DAB antenna, operates in the frequency band from 193 to 230MHz, captures digital radio signals. It is an omnidirectional broadband antenna. It has a gain of 1dB. It has vertical polarization.

Its assembly is very simple because it has the Pre-fix tie system, patented by Ekselans, which allows quick installation on the antenna mast.

Details

Technical Specifications of the Ekselans FM/DAB Combination Antenna x2 F 1dB Connectors

REFERENCE		FDAB BLUE
Code		012003
Channels		FM	DAB
Frequencies	MHz	87,5-108	193-230
Profit	dBi	1	1
Ratio front/rear	dB	0	0
Horizontal opening angle (-3dB)	º	360 / Omnidirec.
Polarization	dB	H	V
Wind load	N (130 Km/h)

More Information

More Information
EAN	8436597792851
Hight	0.400
Length	0.200
Width	0.400
DTT System	Radio Reception
MANUFACTURER SERIES DTT	F-connector
Type	FM
Entorno	Exterior
Orientation	Omnidirectional
Gain	High
LTE compatible	No
Supply required	No
Product Brand	EKSELANS
