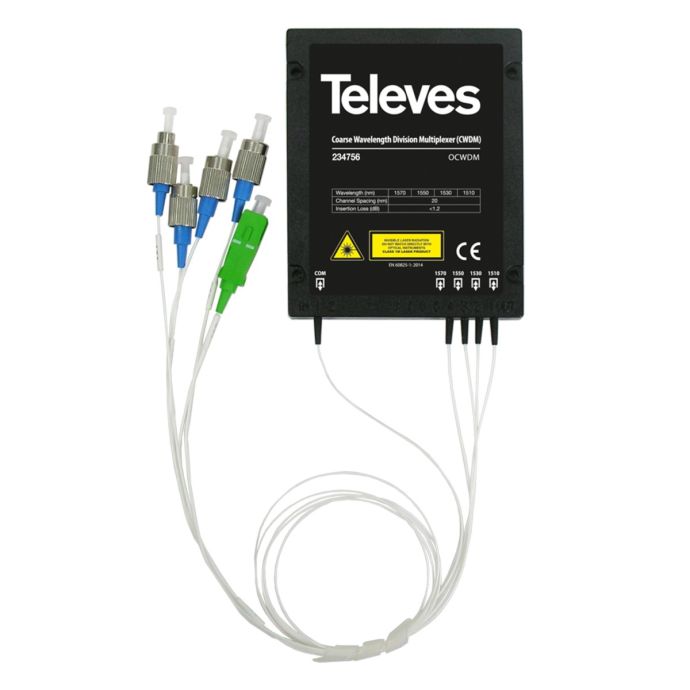

CWDM Optical Multiplexer/Demultiplexer 1in/4out Televes

Name: CWDM Optical Multiplexer/Demultiplexer 1in/4out Televes
Brand: Televes
SKU: TEL234756
Price: 367.67 EUR
Availability: InStock

SKU

TEL234756

Brands: Televes

€367.67 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

CWDM Optical Multiplexer/Demultiplexer Televes 234756

1-in / 4-out FTTH optical device. It receives in a single fiber the optical signal from 4 satellites and terrestrial, and separates it by providing 3 optical satellite signal outputs and a fourth output with satellite + DTT. It uses SC/APC connector at the input and FC/PC at the outputs.

Multiplexer / demultiplexer for distribution of 4 satellites + terrestrial by optical fiber. It is recommended to use together with the Televes optical transmitter ref. 237902 and Televes optical converters ref. 237003, to later distribute by RF to the multiswitch or multiswitches.

Details

CWDM Optical Multiplexer/Demultiplexer CWDM Televes 1 SC/APC Input x 4 FC/PC Outputs

What technical specifications does the Televes 234756 device have?

Optical Channel Performance
Working wavelength	GHz	1570	1550	1530	1510
Channel Spacing	nm	20
Insertion losses	dB	< 1,2
Max. optical power .'	dBm	+22 (Demultiplexor COM->λ)
General Optical Performance
Return losses	dB	> 45
Directivity	dB	> 50
PDL	dB	< 0,15
PMD	ps	< 0,15
Channel uniformity	dB	≤ 0.6
Isolation channel adjacent	dB	≥ 28
Isolation channel non-adjacent	dB	≥ 40
Optical conectors	Type	COM: SC/APC CH31...CH34:FC/PC
Fibre length (with connectors)	mm	500
General Performance
Operating Temp	°C	0 ... +70
Protection index		IP20
