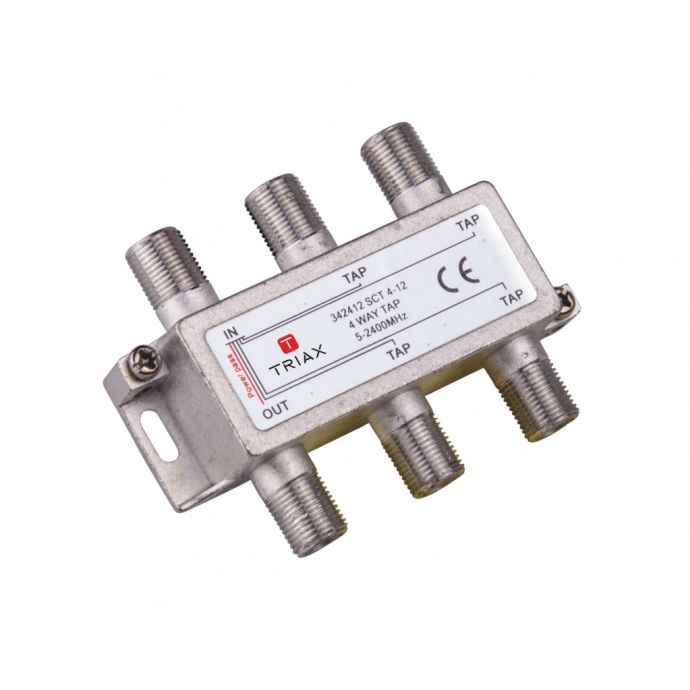

Derivator Connection F 4 Outputs -25dB

SKU
DERIVADOR425
Brands: TRIAX
€5.61 Tax included
Availability: In stock
24/48 Hours

4 Output Derivator with 25dB attenuation for DTT and SAT

Economical internal shunt of F-type connections with 1 input, 1 output for cascading connection with DC passing current and 4 bypass outputs with approximately 25dB losses for the frequency band between 5-2400 MHz that includes BI, BII, BIII, DAB, FM, VHF, UHF and FI.

Passive distribution equipment designed with high losses of 25dB in order to be installed in the highest floors and close to the head in an ICT, where the amplifiers are found.

The shunt's brand may vary based on availability.

-
+

Shunt with type F connectors with 4 outputs and 25dB of attenuation suitable for the frequency band 5-2400 MHz.

What are the main characteristics of the 4-output and -25dB shunt?

  • F type connectors
  • Frequency band: 5-2400 MHz
  • Entries: 1
  • Step outputs: 1
  • Bypass outputs: 4
  • 25dB of derivation losses
  • Supports DC current passage (only between plants)
  • Indoor installation
  • Top Brand Derivator
More Information
EAN 8401342500012
Hight 0.000
Length 0.000
Width 0.000
DTT System DTT & SAT Distribution
MANUFACTURER SERIES DTT F-connector
Color Silver
TV-SAT Distribution Equipment Diverter
Entorno Interior
TV-SAT Distribution Connection F
Input signal DAB, FI, FM, UHF, VHF
Insertion Loss (dB) 25
Product Brand TRIAX
