Distributor 2 outputs Flange type with DC Tecatel

SKU
TECREP-TIP2S
Brands: Tecatel
€5.59 Tax included
Availability: In stock
24/48 Hours

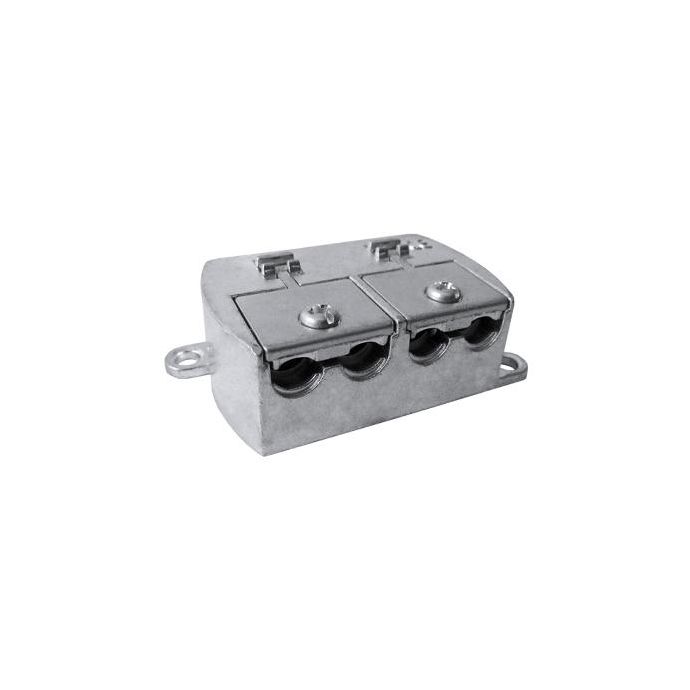

Tecatel REP-TIP2S 2 TIP serial output splitter

Internal 2-way flange (EasyF) splitter for terrestrial and satellite signals (5-2400 MHz) with 6dB of losses and DC current pass for pre-feeding.

The connections of this distributor are made directly with the bare coaxial cable, without connectors, which greatly facilitates and speeds up the installation. Flange connectors ensure a strong and durable connection with the lowest possible insertion losses.

With this passive distributor you can distribute the DTT and SAT signal that arrives from a cable to two end user sockets.

-
+

Distributor of 2 outputs 5-2400 MHz type Tecatel flange with 6dB losses and DC current passage.

What technical specifications does the Tecatel REP-TIP2S 2-output distributor have?

Reference Freq. range (MHz) REP-TIP2S
Outputs 2
Insertion loss (dB)

5 - 40

40 - 1000

1000 - 2050

2050 - 2400

4.8

5.5

6.0

6.5

Mutual isolation (dB)

5 - 40

40 - 1000

1000 - 2050

2050 - 2400

15

20

18

18

Return loss (dB)

5 - 40

40 - 1000

1000 - 2050

2050 - 2400

10

9

9

9

Dimensions (mm) 59 x 30 x 18
Weight (gr.) 62
More Information
EAN 8430549033863
Hight 0.007
Length 0.050
Width 0.050
DTT System DTT & SAT Distribution
MANUFACTURER SERIES DTT Brida Connector
Color Silver
TV-SAT Distribution Equipment Distributor
Entorno Interior
TV-SAT Distribution Connection Flange
Outputs 2
Input signal DAB, FI, FM, UHF, VHF
Insertion Loss (dB) 6
Current bypass Yes
Product Brand Tecatel
