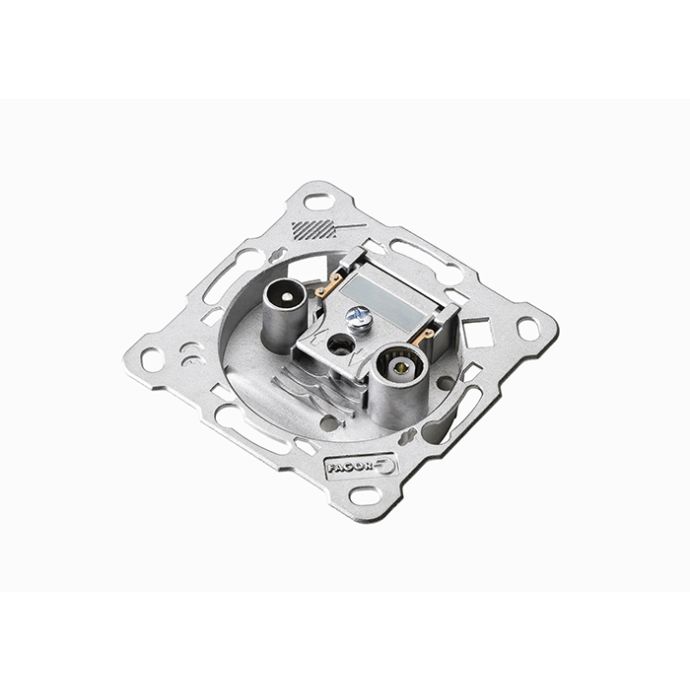

Fagor Final Socket Base 2 Outputs 5-2300Mhz

The BSF 403 DC series final socket has 2 outputs: one IEC male connector for TV+FM and another female connector for SAT. These sockets are used in digital TV distribution, up to 2300MHz, in both individual and collective indoor installations.

This socket is suitable for renovation in downspout installations in homes, for cascade or series mounting, with the sockets connected to each other. It allows the passage of current IN-OUT and SAT output (IEC female).

Its chassis is made of zamak, a very resistant material, with special shielding for the input and output connections, preventing signal leakage to the outside and avoiding interference. It has a high shielding factor.

It has very low attenuations. Its design allows easy installation.

Details

Technical Specifications of the Fagor Final Tap Base 2 Outputs 5-2300Mhz

MODEL			BSF 403 DC
Referencia			86265
No. of outputs			2
Covered band MHz			5 ÷ 2300
Current passing	IN-OUT 300 mA max		-
	SAT 300 mA max		SI
	5 - 30 MHz
Step attenuation	47 - 862 MHz _dB		Final
	950 - 2150 MHz		End
	2150 - 2300 MHz
	5 - 30 MHz		4,5
Attenuation of	47 - 862 MHz _dB		3,5
derivation	950 - 2150 MHz		5,5
	2150 - 2300 MHz		6
	5 - 30 MHz
Directive attenuation	47 - 862 MHz _dB		-
	950 - 2150 MHz
	2150 - 2300 MHz
	5 - 30 MHz		5
Isolation between	47 - 862 MHz _dB		10
Departures	950 - 2150 MHz		12
	2150 - 2300 MHz		12
Return losses	5 - 862 MHz _dB950 - 2300 MHz		10
			10
VHF UHF Shielding factor SAT	30 - 300 MHz 300 - 862 MHz dB 950 - 2300 MHz		75
			65
			55
Output connectors (UNE 20-523-79)		TV SAT	IEC 9,5 (m) IEC 9,5 (h)
Packaging dimensions (20 u.)		mm	300 x 105 x 85
Weight (20 u.)	Kg		2

More Information

More Information
EAN	8432589862656
Hight	0.300
Length	0.500
Width	0.500
System	DTT & SAT
SERIE	CEI Connector
Color	Silver
TV-SAT Distribution Equipment	Connection
Entorno	Interior
TV-SAT Distribution Connection	IEC
Outputs	2
Input signal	FI, FM, UHF, VHF
Insertion Loss (dB)	3
Current bypass	Yes
Product Brand	Fagor
