Fermax DUOX PLUS Relay Module (2 wires)

Name: Fermax DUOX PLUS Relay Module (2 wires)
Brand: Fermax
SKU: FER3267
Price: 94.15 EUR
Availability: InStock

SKU

FER3267

Brands: Fermax

€94.15 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

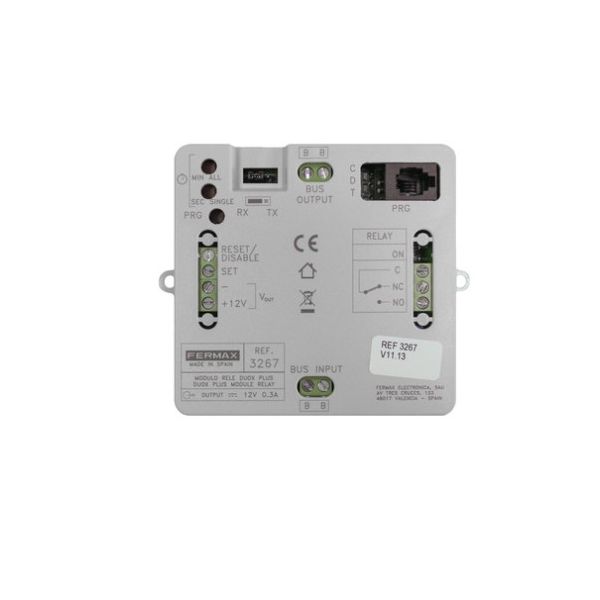

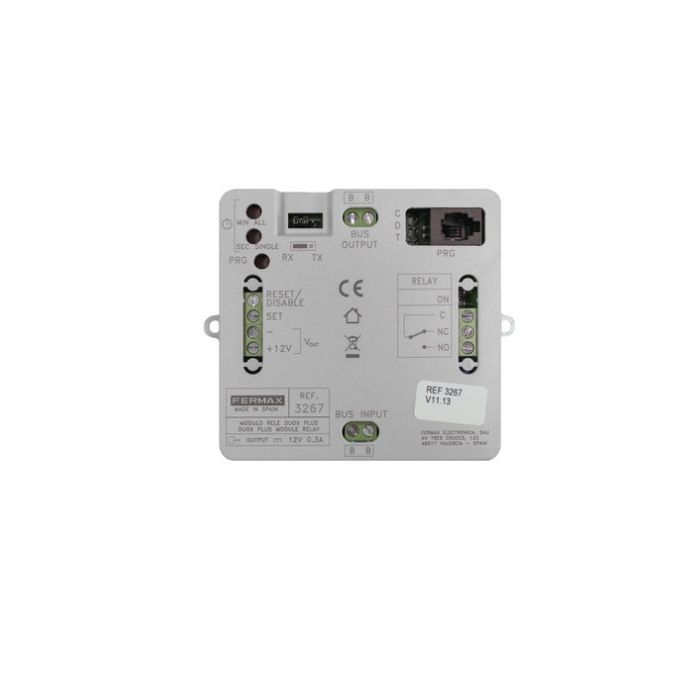

Relay Module DUOX PLUS Fermax 3267

It allows to have a voltage-free relay anywhere in a 2-wire DUOX PLUS installation. It is possible to use one or more relays: per apartment, block or installation.

This relay is configurable in operation and activation: it can be activated by means of commands from the house monitors, guard unit or the panel; also by external pushbuttons, switches, etc.

It has 3 contacts: common (C), normally closed (NC) and normally open (NO).

Details

Fermax voltage-free relay module for 2-wire DUOX PLUS video door entry system

What technical specifications does the Fermax 3267 Relay Module have?

Model: 3267
It makes it possible to have a potential-free relay in DUOX PLUS installations, with several configurable modes of operation and activation:

Activation of the relay by means of commands generated from the home terminals, panels or guard units.
External activation via push buttons, additional external switches, etc.

The DUOX PLUS Relay can be installed anywhere on the DUOX PLUS bus.
It is possible to install one or more relays: per apartment, block or installation.
System: DUOX PLUS (2-wire digital).
Power supply: 18 - 24 Vdc (not polarized, through BUS INPUT or BUS OUTPUT).
Consumption: At rest: 1.24 W.; Maximum: 4.4 W.
Operating temperature: [0.40ºC].
IP: 20.
(+ 12V): 12Vdc auxiliary voltage output (max. 300mA).
Potential-free relay contacts:

C: Common.
NC: Normally closed.
NO: Normally open.
