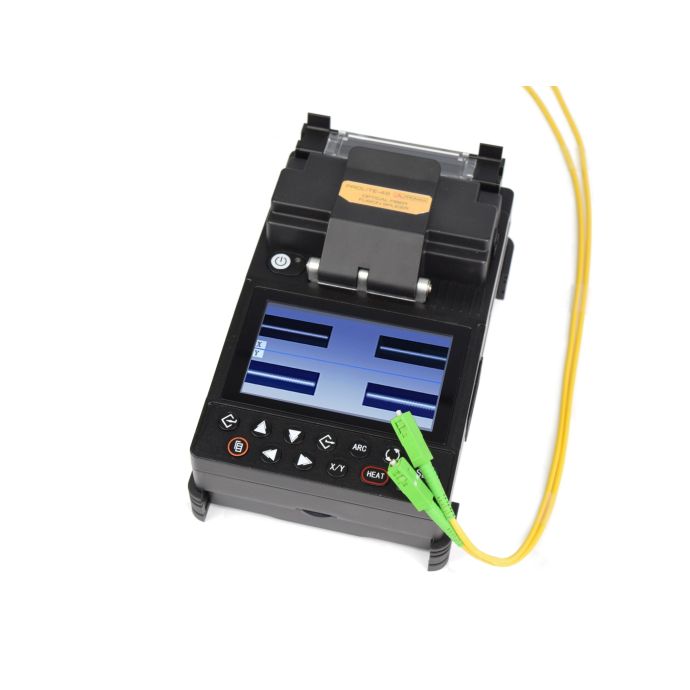

Fiber Optic LITE 42 Fiber Optic Fusion Splicer Kit from Promax

Name: Fiber Optic LITE 42 Fiber Optic Fusion Splicer Kit from Promax
Brand: Promax
SKU: PROLITE42
Price: 3185.33 EUR
Availability: InStock

SKU

PROLITE42

Brands: Promax

€3,185.33 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

Extra-slim Fusion Fusion LITE42 from Promax

The PROLITE-42 extraplate splicer meets the highest quality requirements. It is the perfect design for the installation and maintenance of all kinds of fiber optic networks, especially for FTTH installers.

It has a range of up to 300 fusions with a single battery charge, with automatic fiber alignment per core and up to 300x magnification on the screen. The splicer can be used with a battery and also connected to the mains.

The PROLITE-42 is delivered in its own reinforced transport case, which also includes all the necessary tools to work with fiber optics immediately: Cutting, peeling, fusion protection tubes, cooling tray and replacement electrodes

Details

The PROLITE42 fusion machine is the perfect design for the installation and maintenance of all kinds of fiber optic networks, especially for FTTH installers.

What technical characteristics does the PROLITE42 splicer have?

Fusion in 8 seconds
Alignment by core
Removable battery system (2 batteries included)
Autonomy of up to 300 mergers
Includes tools
Compact and lightweight

What technical specifications does the PROLITE42 splicer have?

Fusion program SM, MM, DS, NZDS
Melt loss 0.02 dB (SM), 0.01dB (MM), 0.04 dB (DS), 0.04 dB (NZDS)
Return loss> 60dB
Fusion Mode Automatic, Semiautomatic, Manual
Fiber alignment method Per core
Applicable fibers Interior and 0.25 mm, 0.9 mm, SC connector (optional)
Fusing time ≤9 seconds
Heating time ≤30 seconds (automatic)
Fiber cutting length From 8 to 16mm
Fiber display and amplification 300x (X axis or Y axis), or 150x (combined view XY axis)
High quality 4.3 "LCD screen
Standard 2N traction test
Sleeve length protection 60 mm, 40 mm
Autonomy 300 cycles of fusion and heating, charging time 3 hours (can be used during charging)
Battery life 300 to 500 charge / discharge cycles, easy replacement battery
Electrode life 3000, electrodes easy to replace
Consumption ≤20 W
Lighting Incorporates various high brightness lights that facilitate the use of the fusionadora in the dark
Power Lithium battery 5200 mAh (11.1 V)
AC adapter (100240V input, 3.5 VDC / 4.5 A output)
Mechanical characteristics
Dimensions 130 mm (W) x 98 mm (H) x 200 mm (Pr.)
Weight 1.6 kg (with battery) / 1.1 kg (without battery)
Included accessories Cutting machine, peeling machine, AC adapter, replacement electrodes, fusion protection tubes, cooling tray, 2 removable batteries and carrying case for the whole set
