Fiber Optic Patch Box 2 outputs SC/APC + 2 fibers 40 Meters Televes

SKU
TEL231542
Brands: Televes
€34.69 Tax included
Availability: In stock
24/48 Hours

Fiber Optic UAP 2 SC/APC outputs + 2 fibers 40 Meters Televes 231542

Indicated to be located in the NTR (Network Termination Registry), in the new ICT building works.

This fiber optic user access point works as a connection point in different locations, both for new works, in ICT environments, as well as for UPV facilities (old construction houses), classrooms, connection cabinets.

Since this fiber optic PAU is pre-connected at one end only, the installation is done from the RTR to the secondary register and when it reaches the telecommunications enclosure, it is connected to the network interconnection register, performing a fusion with a pigtail. If there is a lot of excess cable, the excess is normally cut before performing the fusion with the pigtail so that the installation is perfectly finished and tidy.

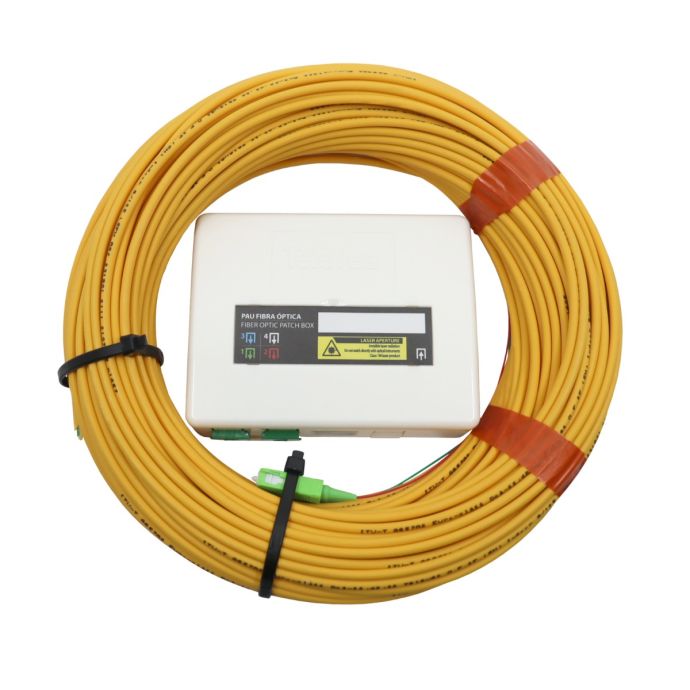

It has 2 SC/APC connectors and two 40-meter fibers, which means easier assembly due to having the fiber already pre-connected. It also includes 2 heat-shrink covers, 2 flanges and hardware for installation.

-
+

Fiber Optic UAP  2 outputs SC/APC with 2 Fibers of 40 Meters

What are the main characteristics of the UAP FO Televes 231542?

  • Made of robust ABS plastic
  • With a capacity of up to 4 SC/APC output connectors
  • Multi-anchoring system: DIN rail, wall or outlet
  • ITU-T G657A2 single-mode fibres
  • Identifying label
  • Equipped with 2 "SC/APC" female-to-"SC/APC" female adapters (with self-locking cover)
  • 100% european quality: manufactured by Televes in SpainDca-s2,d2,a2 Euroclass
  • White colour (RAL 9003)
  • 6 inputs, pre-cut on its sides, for FO access
  • Back input for SC connector
  • Back input for FO and SC connector
  • Pre-cut input at the bottom, for access to a distribution frame (SC/APC)
  • Equipped with: 2 heat-shrink sleeves, 2 cable ties, installation screws
More Information
EAN 8424450251393
Hight 0.250
Length 0.080
Width 0.250
System DTT Optic Fiber
Serie 40m
Fiber type Singlemode
Entorno Interior
Color White
Product Brand Televes
