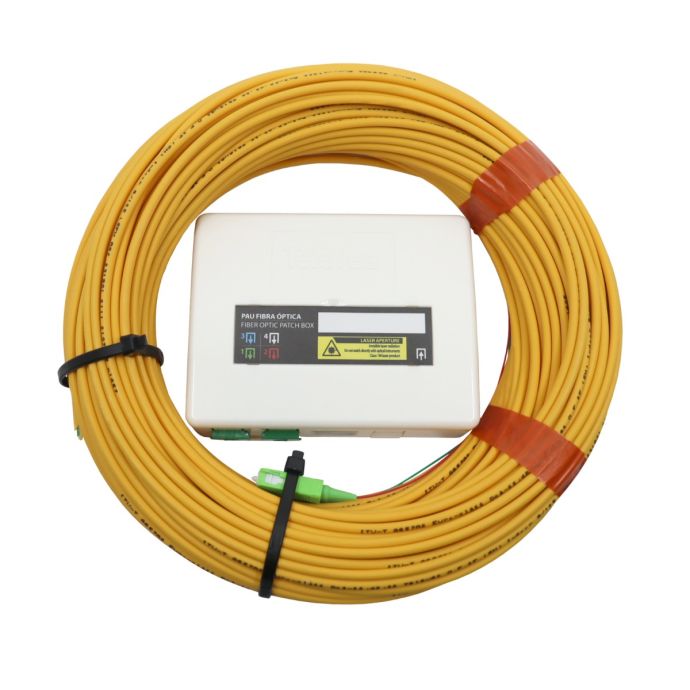

Fiber Optic Patch Box 2 SC/APC Outputs + 2 Fibers 15m Televes

SKU
TEL231540
Brands: Televes
€23.84 Tax included
Availability: In stock
24/48 Hours

Fiber Optic UAP 2 SC/APC Outputs + 2 Fibers 15 Meters Televes 231540

Pre-terminated 2-way fiber optic patch box that includes 15-meter single-mode 2-fiber cable, with SC/APC connectors at one end, since the other end is to merge with the fiber supply network, or to perform the connectorization of FO connectors.

Optical UAP to locate in the Network Termination Registry (RTR) in new construction buildings ICT2. Due to its design, it can also be used in other facilities such as: old buildings, workshops, classrooms, work tables, connection cabinets, etc.

Since this fiber optic PAU is pre-connected at one end only, the installation is done from the RTR to the secondary register and when it reaches the telecommunications enclosure, it is connected to the network interconnection register, performing a fusion with a pigtail. If there is a lot of excess cable, the excess is normally cut before performing the fusion with the pigtail so that the installation is perfectly finished and tidy.

The connectorized fiber that it includes provides the installer with greater comfort and agility in the assembly, by only having to perform the fusion at the connection point of the supplier company. Also included are 2 SC/APC female to female adapters, 2 heat shrink sleeves, 2 cable ties and hardware for installation.

-
+

Fiber Optic UAP pre-terminated 2 SC/APC Outputs + 2 Fiber Pigtails of 15 Meters

What are the main characteristics of the FO UAP Televes 231540?

  • Made of robust ABS plastic
  • With a capacity of up to 4 SC/APC output connectors
  • Multi-anchoring system: DIN rail, wall or outlet
  • ITU-T G657A2 single-mode fibres
  • Identifying label
  • Equipped with 2 "SC/APC" female-to-"SC/APC" female adapters (with self-locking cover)
  • 100% european quality: manufactured by Televes in Spain
  • Dca-s2,d2,a2 Euroclass
  • White colour (RAL 9003)
  • 6 inputs, pre-cut on its sides, for FO access
  • Back input for SC connector
  • Back input for FO and SC connector
  • Pre-cut input at the bottom, for access to a distribution frame (SC/APC)
  • Equipped with: 2 heat-shrink sleeves, 2 cable ties, installation screws
More Information
EAN 8424450251379
Hight 0.200
Length 0.060
Width 0.200
System DTT Monomode
Serie 15m
Fiber type Singlemode
Entorno Interior
Color White
Product Brand Televes
