Fiber Optic SFP Module LC/UPC Bidirectional WDM TL-SM321A

SKU
TL-SM321A
Brands: Tplink
Availability: Out of stock
Consult

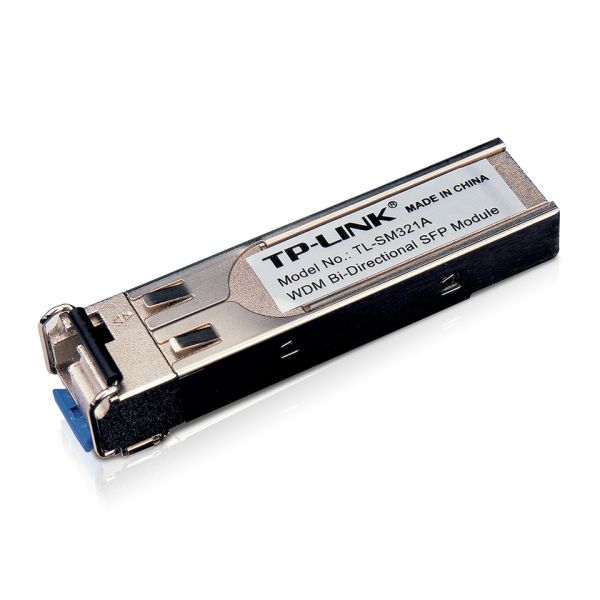

Tp-Link TL-SM321A Singlemode LC/UPC Fiber SFP Module

Single-mode fiber optic SFP adapter, with LC/UPC connector. Compatible with bidirectional WDM technology for transmission over a single fiber strand, as it uses different wavelengths for each direction: (TX: 1550nm / RX: 1310nm).

This SFP module can be inserted into routers, switches and media converters with SFP port to transform copper Ethernet cabling to fiber optic cable and thus extend the transmission distance up to 10km, without attenuation or interference.

This SFP module works in conjunction with the TL-SM321B, necessary to complete the link.



Singlemode Fiber SFP Adapter Module with LC/UPC connector, range 10km

What technical specifications does the Tp-Link TL-MS321A SFP Module have?

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3z, TCP/IP
Wave Length TX: 1550 nm
RX: 1310 nm
Power Supply 3.3 V
Safety & Emission FCC, CE
Cabel Single-Mode Fiber
Fiber Type 9/125 μm Single-Mode
Max. Cable Length 10 KM
Data Rate 1.25 Gbps
Port Type LC Simplex
Environment Operating Temperature: 0–70 °C (32–158 °F)
Storage Temperature: -40–85 °C ( -40–185 °F)
Operating Humidity: 10–90% RH, Non-Condensing
Storage Humidity: 5–90% RH, Non-Condensing
More Information
EAN 6935364030513
Hight 0.120
Length 0.040
Width 0.080
Product Brand Tplink
FO Distribution SFP Module
Entorno Interior
Write Your Own Review
You're reviewing:Fiber Optic SFP Module LC/UPC Bidirectional WDM TL-SM321A
Your Rating
File Label Size Download
pdf Ficha técnica de los Módulos SFP Tp-Link TL-SM321A / TL-SM321B 1.4 MB Download
