Filter for Duox installations

SKU
FER3244
Brands: Fermax
€68.43 Tax included
Fermax
Availability: In stock
24/48 Hours

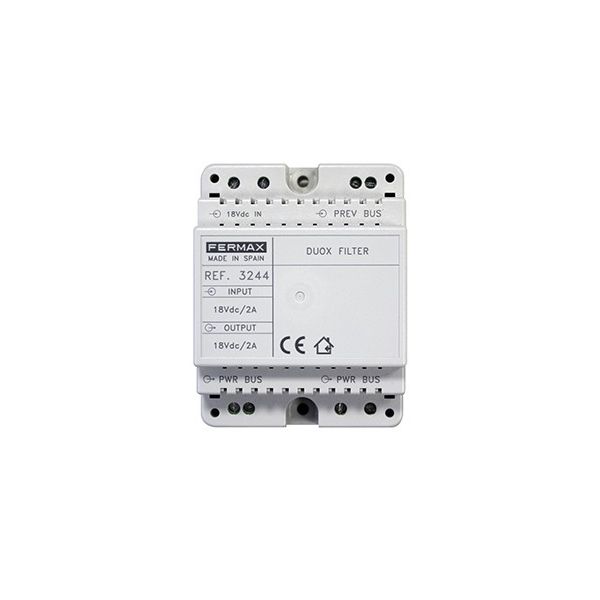

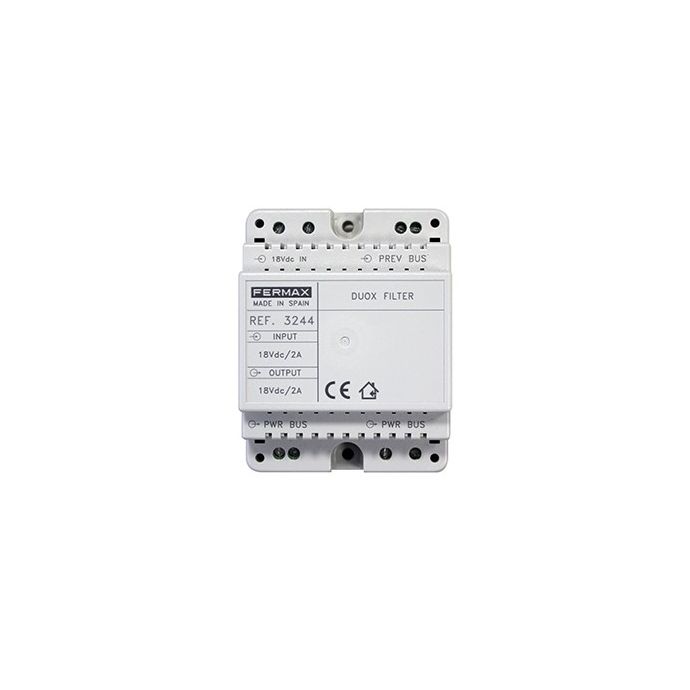

Duox Filter

DIN-4 rail format for easy installation inside a box of electrical equipment, or can be screwed directly on the wall.

The source can not be connected directly to the bus, given the characteristics of the DUOX system, since the power and data go through the same wires. This requires the Connections Module.

The feeder connections module must be connected directly to the bus with the shortest cable distance possible.

This module prevents the power from disturbing the operation of the rest of the signals that circulate through the system and it will also be the one that allows to connect more sources if the system requires it.

The Duox 3244 filter prevents the power supply from disturbing the operation of the other signals.

What technical characteristics does the 3244 filter have?

  • Dimensions DIN 4: 70x 90x60 mm
  • Input voltage: 18 Vdc
  • Maximum output current: 2A
  • Feeding:
  • DUOX system: 18 Vdc
  • Output current: 18 Vdc. Sources up to 3.5 A.
  • Input voltage DUOX system: 18 Vdc.
More Information
EAN8424299032443
Hight8.000
Length6.000
Width10.000
ACCESOS - SISTEMADUOX
ACCESOS - SERIESpare
ColorWhite
TypeAccessories
Product BrandFermax
Write Your Own Review
You're reviewing:Filter for Duox installations
Your Rating
File Label Size Download
pdf Ficha técnica del filtro duox 3244 39.2 KB Download
