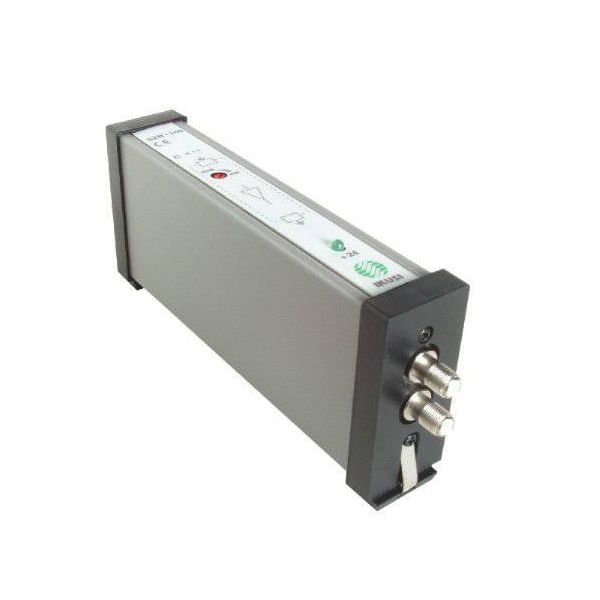

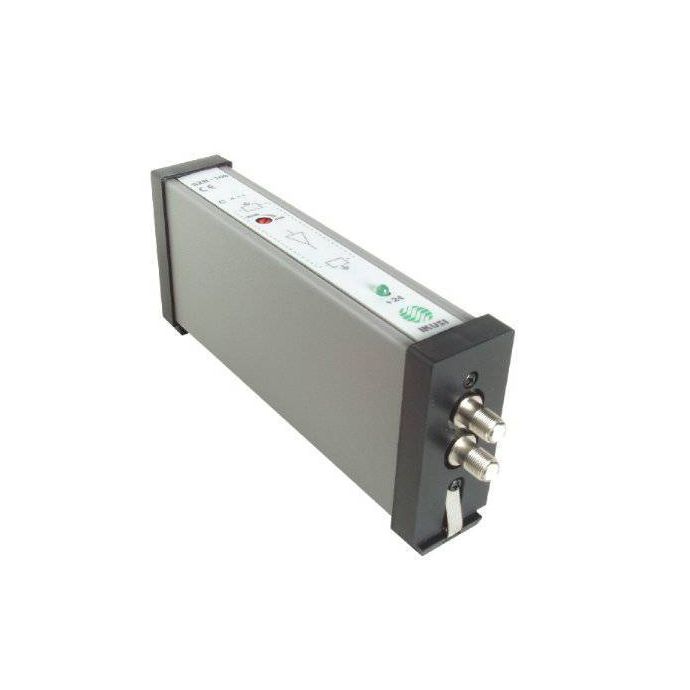

Header Amplifier DAB (192-229 MHz Digital Radio with SZB Series Ref: IKU3160 of Ikusi. TV single channel and multichannel amplifiers, the latter specially designed for the co-amplification of analog and digital channels. Z input demultiplexing and Z output multiplexing. Adjacent channel amplification in UHF band. • FM Radio and DAB Amplifiers. • In a SZB station is appropriate to order the amplifiers in order of increasing channel. The output is taken from the last one.
Modules Amplification, Conversion and Modulation, dim. 190x38x87 mm.
F connectors
Toolless mounting on foundation-wall bracket.
TV single channel and multichannel amplifiers, the latter specially designed for the co-amplification of analog and digital channels. Z input demultiplexing and Z output multiplexing.
Adjacent channel amplification in UHF band.
Amplifiers FM and DAB radios.
PLL controlled converters. Z input demultiplexing.
At one station each converter module must be complemented with an amplifier module output channel.
Amplifier / Sat-coupler. - Programmable TV Modulators Double Sideband.
Feeders from the AC mains, dimensions 215x35x140 mm.
+24 VDC output voltage automatically connected to the RF modules through contact bar incorporated in the base-support. -
In a station it is appropriate to order SZB amplifiers in order of increasing channel.
