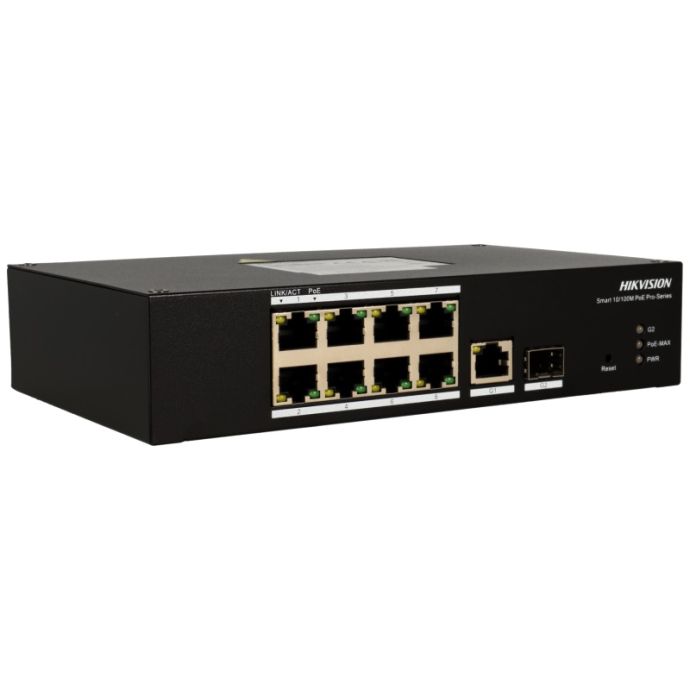

Hikvision 10-Port Managed Switch 8 POE 10/100 Ports and 1 Uplink 1GB 1 Fiber Optic Port 110W

General
- Housing: Metal material
- Net Weight: 0.6 kg (1.3 lb)
- Gross Weight: 1.2 kg (2.6 lb)
- Dimensions: (W X H X D)197.00 mm × 114.20 mm × 42.20 mm (7.70'' × 4.40'' × 1.60'')
- Operating Temperature: -30 °C to 65 °C (-22 °F to 149 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Humidity Conditions: 5% to 95% (non-condensing)
- Relative Humidity: 5% to 95% (non-condensing)
- Power Supply:
or Power adapter: 48 VDC (working temperature: 0°C to 45°C); Grounding
or terminal: 48-57 VDC (working temperature: -30°C to 65°C)
- Installation Mode: Desk-Mounted,Rail
- Max. Power Consumption: 120 W
- Power Consumption In Idle: 5 W
- Surge Protection: 6 KV
Network Parameters
- Ports: 8 × 10/100 Mbps PoE port, 1 × Gigabit RJ45 port, 1 × Gigabit fiber optical port
- MAC address table: 16 K
- Switching capacity: 9.2 Gbps
- Packet forwarding rate: 6.84 Mpps
- Internal Cache: 4 Mbits
PoE Power Supply
- PoE Standard: IEEE 802.3af,IEEE 802.3at
- PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE Port: PoE: Ports 1 to 8
- Max. Power Port: 30 W
- PoE Power Budget: 110 W
Software Function
- Long Range
o Ports 1 to 8: up to 300m.
o Long range performance may vary depending on camera model or cable condition.
- Port isolation
o Ports 1 to 8: Port isolation mode for enhanced network security.
o Ports in an isolation group cannot communicate with each other, but can communicate with ports outside the isolation group.
- PoE Watchdog: Ports 1 to 8: automatically detects and restarts unresponsive cameras.
- QoS:
    o QoS is used to allocate bandwidth to different services in order to provide end-to-end QoS assurance.
    o Supports port-based priority configuration.
    o Supports SP, WRR priority scheduling mode.
·        VLAN
         o The VLAN is used for network scale planning and network health improvement.
         o Supports 802.1Q.
         o Configurable VLAN ID from 1 to 4094.
         o Supports trunk and access port mode.
         o Supports a maximum of 4094 VLANs.HPP:
- Supports one-click activation and remote management via Hik-Partner Pro. Supported functions:
     1. View port rate.
     2. View port bandwidth utilization rate.
     3. View topology information.

     4.View alarm status.
     5. Reset ports and devices.
     6. Refresh the device remotely.
·         Loop prevention: Loop prevention is used to prevent the switching network from forming loops that severely affect network communication. Disabled by default. Supports 802.1D STP/RSTP/ERPS
- System maintenance: supports remote upgrades, restore default settings, log viewing, basic network parameter configuration, import/export configuration and time synchronization.
Certifications
·         EMC
          o    FCC (47 CFR Part 15, Subpart B).
          o    CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017).
          o    IC (ICES-003: Issue 6).
          o    RCM (ASNZS CISPR 32: 2015).
·         Seguridad
          o    UL (UL 60950-1).
          o    CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second edition).
          o    CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017).
·         Química
          o    CE-RoHS (201165EU).
          o    WEEE (201219EU).
          o    Reach (Regulation (EC) No.19072006.
