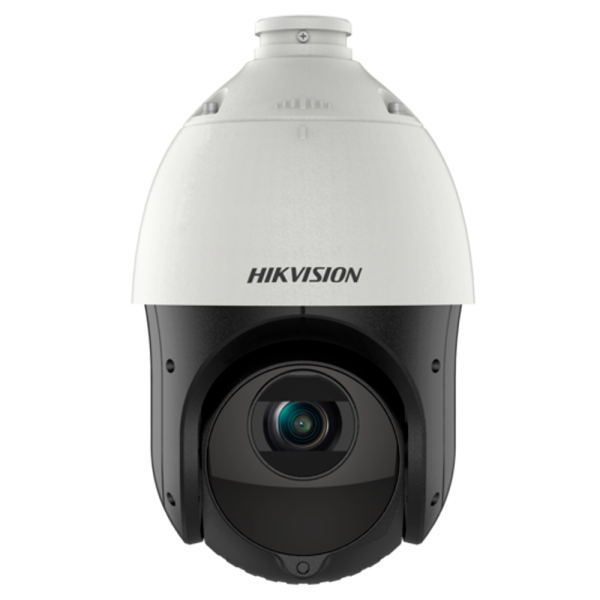

Hikvision 4Mpx PTZ IP Camera 5-75mm Varifocal Lens

Brand

HIKVISION

Range

Value

Image sensor

1/2.8“ Progressive Scan CMOS

Maximum resolution

4 Megapixel (2560x1440)

Main stream rate

25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) [%VAR%]

Extra stream rate

25 fps (704x576, 640x480, 352x288)

Third stream rate

25 fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288)

Range performance

1320 m (D), 523.8 m (O), 264 m (R), 132 m (I)

Minimum illumination

Ultra Low Light (Powered by DarkFighter)
Colour: 0.005 Lux @ (F1.6, AGC ON)
Black and white: 0.001 Lux @ (F1.6, AGC ON), 0 lux with IR LEDs range 100 m

Compression

H.265+/ H.265 / H.264+/ H.264

Bitrate

32~16384 kbps

Lens

Motorized varifocal 5~75mm (Optical zoom 15X) (Optical zoom [%VAR%])

Viewing Angle (FOV)

55~4º (H), 33~2.2º (V), 61.5~4.6º (D)

Digital zoom

16X

Electronic shutter

1/1s~1/30.000 s

Day / Night

Removable mechanical ICR filter

Image improvements

WDR (120 dB), BLC, HLC, 3D-DNR, AWB, Privacy Masking, ROI

ANR

Yes

Motion Detection

Yes

Smart Features

AcuSense
DeepLearning based technology for human and vehicle classification with false alarm reduction applied on:
Line Crossing, Area Intrusion, Inbound Region, Outbound Region, Outbound Region

Face Capture:
Face capture, up to 5 faces at once

*AcuSense and Face Capture cannot be enabled at the same time.

Pan/Tilt Range

Horizontal: 360°, Vertical: -15°~90° auto flip

Manual speed

Horizontal: 0.1~80 °/s, Vertical: 0.1~80 °/s

Speed between Presets

Horizontal: 80 °/s, Vertical: 80 °/s

Preset positions

300 preset, 4 auto pattern, 8 auto tour, auto pan, auto scan

Internal memory

MicroSD card slot up to 256 GB

Audio

1 input (Line In) / 1 output (Line Out)

Alarms

1 In / 1 Out

PTZ Control

Through network access

Network interface

Ethernet 10 / 100 BaseT

Remote access

Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central

Interoperability

ONVIF, ISAPI

Power

DC 12 V / 18 W max. / PoE+ IEEE802.3at

Temp. operation

-30º C ~ +65º C

Degree of protection

IP66 / Overvoltages 6000 V

Dimensions (without bracket)

Ø 164.5 mm x 290 mm (H)

Weight (without bracket)

2000 g
