IKALL Simplebus 2-Wire Call Module Comelit

SKU
COM3360B
Brands: Comelit
€309.63 Tax included
Free shipping
(Iberian Peninsula)
Comelit
Availability: In stock
24/48 Hours

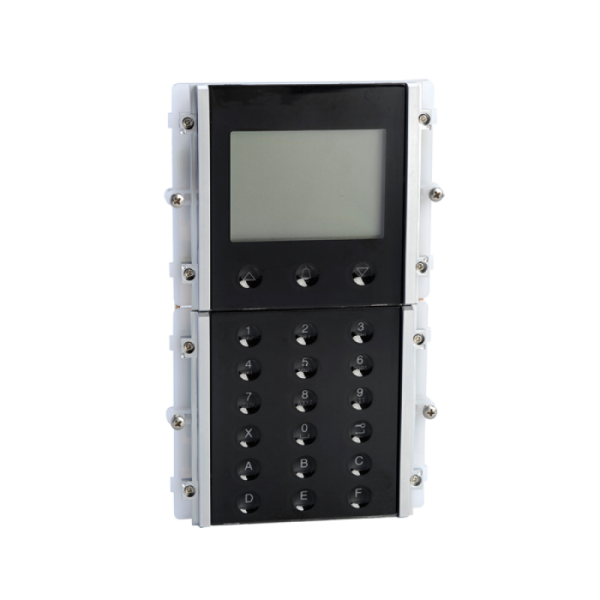

2-Wire Call Module IKALL Series Comelit 3360B

Module with LCD screen of 128x64 dots and keyboard with 21 backlit buttons with blue LEDs. Allows you to make the call by dialing the user code, searching for names using the two search buttons or by directly typing the initial of the name. It can also be used as an access control.

Allows you to customize a welcome message and the user interface in two languages. Compatible with Simplekey proximity keyrings. The system can store up to 3,500 usernames and 6,000 passwords for door opening.

User programming and settings is easily done with the 1249B PC software (included) via USB (USB cable included), RS485 or locally on the call module itself.

2-Wire Simplebus Call Module for Comelit IKALL entrance panel

What technical specifications does the Comelit 3360B Call Module have?

HARDWARE FEATURES

  • Total push buttons (n ​​°): 18

MAIN CHARACTERISTICS

  • Height (mm): 180
  • Width (mm): 112
  • Depth (mm): 40
  • Operating temperature (° C): -25 ÷ 55
  • Operating humidity (% RH max): 25 ÷ 75
  • Maximum current draw (mA): 80

SOFTWARE / FIRMWARE CHARACTERISTICS

  • No. of memorizable users (n °): 3500

GENERAL DATA

  • Color: Black RAL9005

FUNCTIONS

  • Lock release button function: Yes

COMPATIBILITY

  • Simplebus 2 Audio / Video System: Yes
  • Building Kit audio / video system: Yes
  • Simplebus 2 audio system: Yes
  • ViP system: Yes

ASSEMBLY / INSTALLATION

  • Flush mount: Yes
  • Wall mount: Yes

AUDIO / VIDEO CHARACTERISTICS

  • Screen Dimensions (Inch): 3
  • Display resolution (HxV - pixel): 128x64
  • Display type: Alphanumeric

CONNECTIVITY

  • Type of connections / ports: RS485, USB
  • RS485 ports (n °): 1
More Information
EAN8023903316537
Hight0.160
Length0.100
Width0.160
ACCESOS - SISTEMASimplebus (2 threads)
ACCESOS - SERIEIKALL
ColorBlack
TypeEntrance panel
Product BrandComelit
Write Your Own Review
You're reviewing:IKALL Simplebus 2-Wire Call Module Comelit
Your Rating
File Label Size Download
pdf Ficha Técnica Módulo Llamada 2 Hilos Serie IKALL Comelit 3360B 1 MB Download
