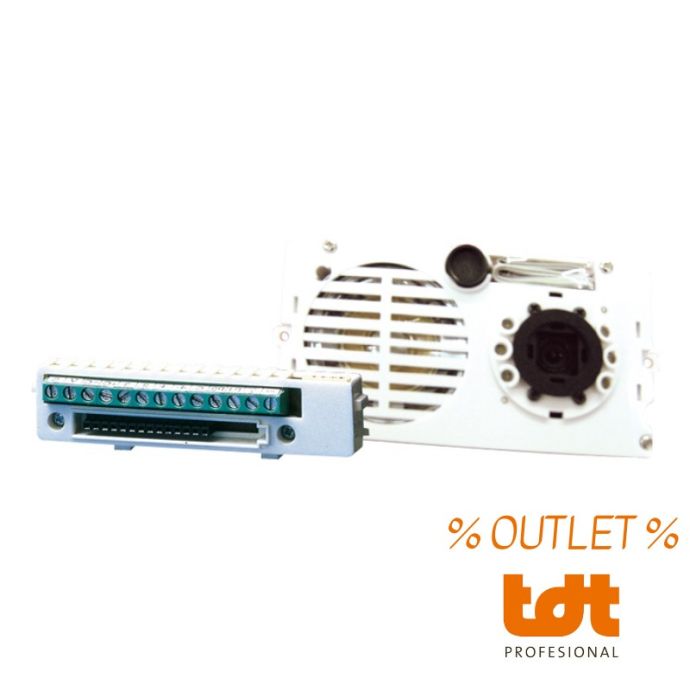

IKALL Simplebus 2-Wire Color Camera Group Outlet

OUTLET: Audio/Video Unit for 2-wire Simplebus System with Color Camera

What technical specifications does the Comelit 4680C Video Group have?

GENERAL INFORMATION

• Type: Audio Video Unit
• Product height (mm): 102
• Product Width (mm): 55
• Product Depth (mm): 43
• Product Weight (g): 200
• Product Color: White
• Material: ABS

COMPATIBLE SYSTEMS

• Simplebus 2 audio / video with power supply art. 4888C: Yes

AUDIO CHARACTERISTICS

• Microphone: 9.7 (ø), omni-directional
• Speaker: 50mm (Ø), 8 Ohm, 0.2W
• Implemented Technologies: Echo Cancellation

CAMERA CHARACTERISTICS

• Sensor type: 1/3 "CMOS
• Camera: Colors
• Lens (mm): 3.6
• Resolution (H x V - pixel): 500x582

ELECTRICAL CHARACTERISTICS

• Power supply type: External power supply
• Supply voltage: 33VDC

HARDWARE FEATURES

• Terminals: L L V + V- RTE DO PR GND SE COM NC NO
• Removable terminals: Yes

HARDWARE FEATURES

• Number of entries (n °): 2
• Number of outputs (n °): 2

ADJUSTMENTS

• Speaker volume: Yes

ENVIRONMENTAL AND CONFORMITY CHARACTERISTICS

• Operating temperature (° C): -25 ÷ 55
• Operating humidity (RH max -%) (%): 25 ÷ 95
• Environmental class: III
• Compliance and Certifications: RoHS II - 2011/65 / EU (EN 50581: 2012), EMC 2014/30 / EU (EN61000-6-1: 2007, EN 61000-6-3: 2007 + A1: 2011)

PRINCIPAL FUNCTIONS

• Door opening: Yes
• Number of auxiliary relays (n °): 1
• Local door open button input: Yes
• Door open signaling input: Yes
• Visual indications of system status: Yes
• Acoustic signals of system status: Yes
• System state speech synthesis: Yes

FEATURES

• Video signs: Yes
• Audio signaling: Yes
• Door release (dry contact jumper): Yes
• Speech synthesis: Yes
• Door release (DC output): Yes
• Video output: 1Vpp 75PAL
• Video resolution (H x V - pixel): 500x582
• Simplebus 2 Audio / Video System: Yes
• Operating humidity (% RH max): 95
• Lens dimensions (mm): 3.6
• Camera Orientation: Yes
• Minimum illumination (lux): 0.35
• Horizontal resolution (tvl): 540
