Kit 2 Televes 4G/LTE MIMO Antennas

Name: Kit 2 Televes 4G/LTE MIMO Antennas
Brand: Televes
SKU: TEL650302
Price: 71.75 EUR
Availability: InStock

SKU

TEL650302

Brands: Televes

€71.75 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

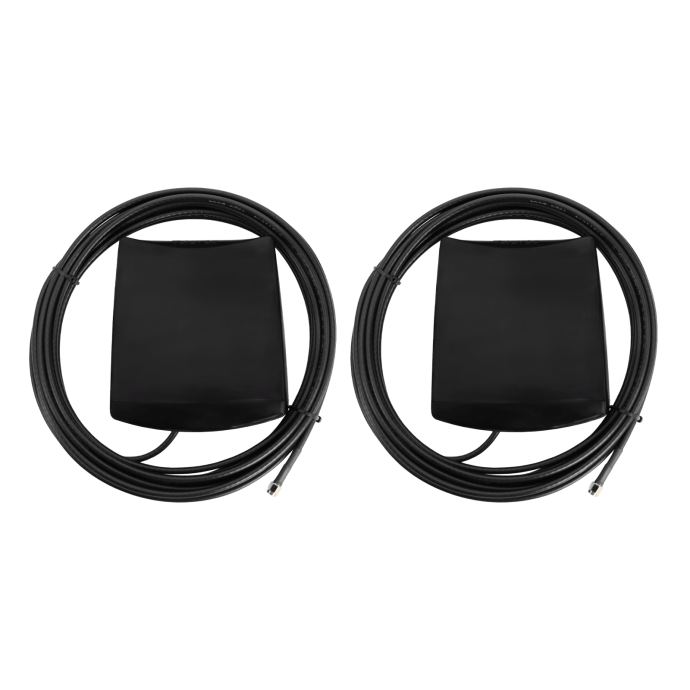

Kit 2 Antennas 4G/LTE MIMO Televes 650302

4G/LTE antennas to improve the connection to the operator's network in areas of low coverage. With MIMO technology that provides higher quality and reliability of 4G/LTE signals in areas of difficult reception and propagation.

The antennas must be installed more than 0.5m apart for multiple send/receive and connect directly to a 4G MIMO router via the 7.5 meter 50Ω coaxial cable (included).

As they are omnidirectional antennas, their installation is very simple since they do not need to be oriented. They are passive antennas, so they have no consumption.

Details

Kit 2 Antennas of emission and reception 4G/LTE, with MIMO technology

What are the main characteristics of 4G/LTE Televes 650302 antennas?

Passive antenna for 4G extended coverage, enhancing the operator's network connection quality
MIMO technology (Multiple Input, Multiple Output): provides greater quality and reliability of 4G/LTE signals in places of difficult reception and propagation
Omnidirectional transmission/reception: pointing is not required
Mobile 4G devices are more efficient in terms of power and consumption
Optimized response on both the Uplink and the Downlink
Passive antenna, no power consumption

What technical specifications do 4G/LTE Televes 650302 antennas have?

Frequency band	Mhz	690...960	1700...2700
Gain	dBi	1	3,5
F/B ratio	dB	Omnidirectional
Impedance	Ohm	50
Connectors		SMA (male)
Windload	N	16,2 (@130Km/h)
		22,3 (@150Km/h)
Protection index	IP	23

More Information

More Information
EAN	8424450208670
Hight	0.410
Length	0.040
Width	0.280
RED - System	4G / 5G / SIM
RED - SERIE	Pasive
Color	Black
Network Equipment	4G/5G Antenna
PoE	No
Product Brand	Televes
