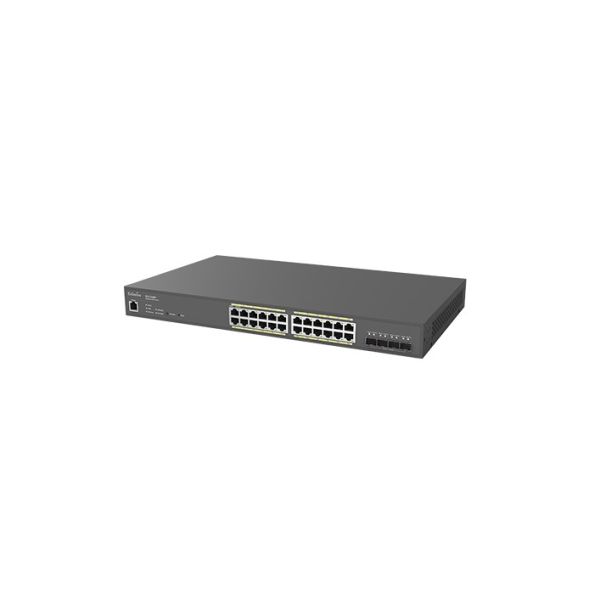

EnGenius 24 Port 1 Gb POE+ and 4 SFP 410 W Cloud Manageable Switch

Name: EnGenius 24 Port 1 Gb POE+ and 4 SFP 410 W Cloud Manageable Switch
Brand: EnGenius
SKU: ECS1528P
Price: 371.3 EUR
Availability: OutOfStock

SKU

ECS1528P

Brands: EnGenius

Availability: Out of stock

Delivery: Consult

Be the first to review this product

L2+ Switch 24 Gigabit PoE+ ports and 4 SFP+ EnGenius ECS1528P

24-port Gigabit (10/100/1000Mbps) Layer 2+ managed switch with PoE+ and 4 SFP+ optical ports for uplinks. Switch with cloud management by EnGenius Cloud for network configuration, monitoring and management from PC and mobile devices (smartphone, tablet). It can also be managed from local web server and ezMaster software.

This switch allows to power compatible PoE devices, such as IP-based cameras, VoIP phones and access points, with a total power of 410W. This model supports full-featured Layer 2+ switching. Possibility of mounting the switch in a 19" rack. The characteristics of this switch make it ideal for applications in small and medium-sized companies.

Details

24-port Gigabit PoE+ and 4 SFP+ L2+ switch with Cloud/Local/ezMaster management

What technical specifications does the EnGenius ECS1528P switch have?

Network Ports:
- (24) 10/100/1000 Mbps Gigabit
- (4) 10/100/1000/10000 Mbps SFP+
Switching Capacity: 128Gbps
SDRAM: 512MB
Flash Memory: 128MB
PoE Capable Ports: 1-24
Total PoE Budget: 410W
Power Source: 100 ~ 240VAC, 50-60Hz
Physical Interface
LED Indicators
- Power LED
- Fault LED
- PoE Max LED
- LAN Mode LED
- PoE Mode LED

L2 Features

Network Management
- EnGenius Cloud
- ezMaster
- Local Web GUI
MAC Address Table
Jumbo Frame: 9K
Multicast Group: Max 256 groups
MLD Snooping: v1
Bandwidth Control: Port-based bandwidth control (Ingress/Egress)
Port Security: Max. 256 Entries
Access Control List (ACL)
- MAC Based ACL
- IPv4/IPv6 Based ACL
- ACL Binding
- Timebase ACL
Web Graphical User Interface (GUI)
- HTTP IPv4 / IPv6
- HTTPS IPv4 / IPv6
SSL Certificate: Certificate/Key Import
SNMP v1/v2c/v3 Support
RMON 1,2,3,9
Time Setting/Daylight saving
Common L2 Features
- 802.1d Spanning tree
- Loopback Detection
- Multicast Filtering
- IGMP Multicast Forwarding
- IGMP Snooping
- MLD Multicast Forwarding
- 802.1Q VLAN tagging
- 802.3x flow control
- 802.3ad Link Aggregation
- IPv4 DHCP Relay
- IPv4 DHCP Snooping
- IPv4 DHCP Snooping Source MAC Address Check-up
- ARP Inspection
- ARP Packet Validation (additional validation checks)
- Voice VLAN
- Port-based VLAN
- Protocol-Based VLAN
- CoS Mapping
- 802. 1X Radius Authentication Protocol
- IEEE 802. 3az Energy Efficient Ethernet (EEE)
- Command Line Interface (CLI)
- SSH Server
- Telnet Server
- TFTP Client
- Configuration Upgrade/ Backup
- Simple Network Time Protocol (SNTP)
- SYSLOG
- 802.1d Spanning tree

L3 Features

Multiple IP Interface: 20 IPv6 address
ARP Table: Max. 192 ARP entries
Static ARP: Static 192 ARP entries
IPv4 Static Route: Max. 63 entries
IPv6 Static Route: Max. 21 entries

More Information

More Information
EAN	4713361934568
Hight	0.100
Length	0.350
Width	0.540
RED - System	POE+
RED - SERIE	24 Ports
Color	Black
Network Equipment	Switch
Ports	24
Data Speed	Gigabit (10/100/1000Mbps)
PoE	Yes
Product Brand	EnGenius
