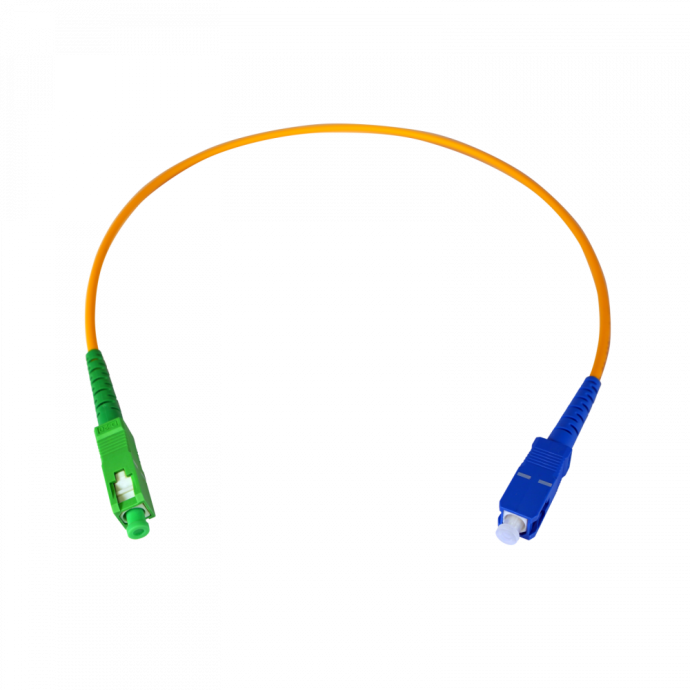

Singlemode Fiber Optic Patch Cord 3mm Simplex SC/APC - SC/UPC 0.4m

SKU
TEL232625
Brands: Televes
€6.10 Tax included
13% Discount for professionals
Televes
Availability: In stock
24/48 Hours
Be the first to review this product

Singlemode Fiber Optic Patch Cord 3mm Simplex SC/APC - SC/UPC 0.4m from Televes Ref. 232625

Single-mode fiber optic patch cord, with a 3mm thick section and 40cm length. The cable comes with two pre-connected connectors, so no specific tool is necessary.

One end has SC/APC connector and the other end has SC/UPC. The cable has low losses. It includes aramid fibers to reinforce its structure.

Its cover is orange and it is halogen-free (LSFH).

-
+

Technical Specifications of the Singlemode Fiber Optic Patch Cord 3mm Simplex SC/APC - SC/UPC 0.4m

What technical characteristics does the Televes 232526 hose have?

euroclass   Dca
Euroclass: Emission of opaque smoke   s2
Euroclass: Fall of ignited particles   d2
Euroclass: Acidity   a1
fiber type   Monomode (ITU-T-G.657A2)
Fiber Type Category   OS1
Fiber core diameter μm 9
Fiber Cladding Diameter μm 125
Fiber coating diameter μm 250
cable structure   Ajustado
Fiber structure diameter mm 0,85
Outer Cover Diameter mm 3
Outer sheath material   LSFH
blocking gel   No
Attenuation 1310nm dB/km < 0,8
Attenuation 1490nm dB/km < 0,8
Attenuation 1550nm dB/km < 0,8
Connector 1 Insertion Loss dB < 0,5
Connector 2 Insertion Loss dB < 0,5
Return loss in connector 1 dB > 60
Return loss in connector 2 dB > 50
Optical connector type 1   SC
Polished Type (Optical Connector 1)   APC
Optical connector type 2   SC
Polished Type (Optical Connector 2)   UPC
Traction in installation N 450
permanent traction N 200
Traction protection element   aramid fibers
crushing on installation (@100mm) N 500
permanent crush (@100mm) N 100
minimum bend radius mm 15
Operating temperature °C -20 ... 70
More Information
More Information
EAN 8424450222942
Hight 0.100
Length 0.001
Width 0.100
System DTT Optic Fiber
Fiber type Singlemode
Entorno Interior
Color Yellow
Product Brand Televes
