Mast Amplifier 1 BI/BIII/DAB/FM/UHF Input 1 36dB Output with LTE 5G OUTLET from Televes

SKU
OUTTEL535620
Brands: Televes
€30.37 Tax included
Availability: In stock
24/48 Hours

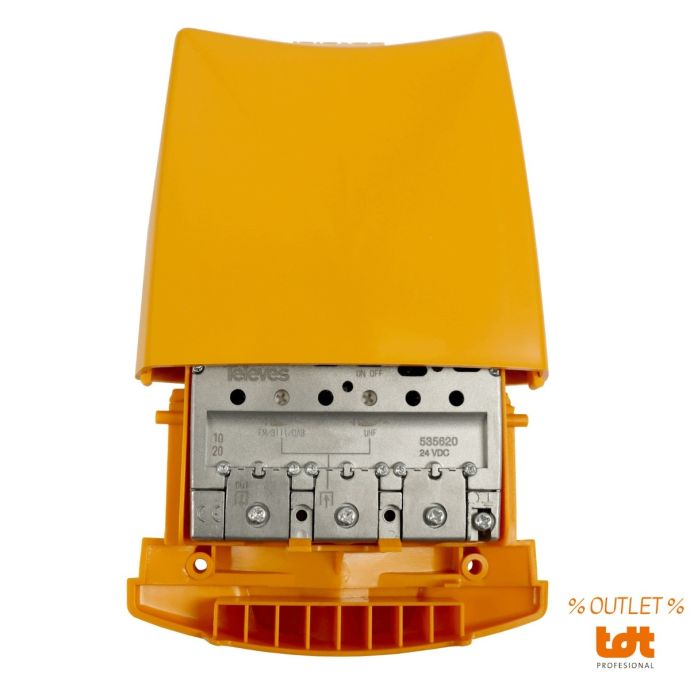

OUTLET: Mast Amplifier 1 Input: FM/BIII/DAB/UHF 36dB LTE 5G Televes 535620

Amplifier to be installed on the antenna mast, with 1 single input for several terrestrial bands(FM/BIII/DAB/UHF). Adapted to the 2nd Digital Dividend with integrated 5G filter. It is powered at 24Vdc and supports pass-through to feed another preamplifier or active antenna.

Outdoor amplifier for terrestrial television signals, with 36dB gain and 113dBμV output. If you want to amplify several bands you can do it by mixing them previously with an outdoor terrestrial mixer.

The assembly of this amplifier is very simple thanks to its EasyF connection system, which does not use connectors. The equipment is protected from the weather in an ABS plastic case. It includes a plastic flange to attach it to the mast.

What is OUTLET of TDTprofesional?

Our Outlet category is composed of products returned by our customers, which are in perfect condition and have been tested by our technical department to ensure proper operation. The product packaging may be damaged or the product may not be shipped in its original packaging. Our Outlet products include a special discount and have the same warranty as new products.

-
+

Bands FM/BIII/DAB/UHF
Frequency range MHz 88 ... 108 174 ... 254 470 ... 694
Gain dB 15 32 36
Gain regulation margin dB 0 ... 20 0 ... 20
Output level dBμV EN 50083 (-35dB) 122 122 123
DIN 45004B 115 115 116
EN 50083 (-60dB) 112 112 113
Noise figure dB --- 5 5
Power suply V /mA 24 / 80
Max input current OFF mA -
ON 45
Protection index IP 23
Operating temperature range ºC -5 ... +45
More Information
EAN 8424450214992
Hight 0.000
Length 0.000
Width 0.000
DTT System DTT Amplifier
MANUFACTURER SERIES DTT F-connector
Color Orange
Type Mast amplifier
Entorno Exterior
Input signal FM, UHF, VHF
# Inputs 1
Outputs 1
Gain 36
Max. output level Ganancia (dB/uV) 113
LTE compatible No
Current bypass Terrestrial
Product Brand Televes
Write Your Own Review
You're reviewing:Mast Amplifier 1 BI/BIII/DAB/FM/UHF Input 1 36dB Output with LTE 5G OUTLET from Televes
Your Rating
File Label Size Download

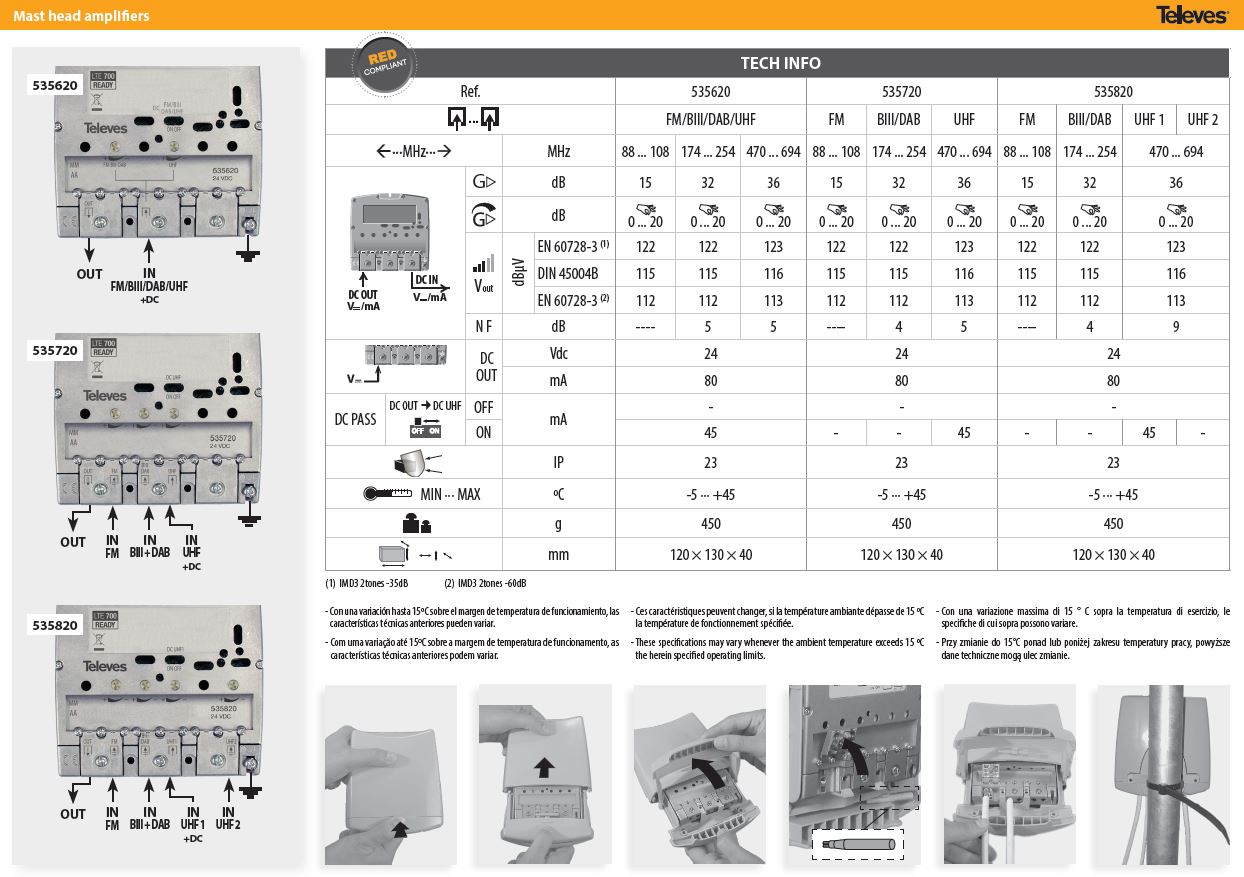

JPG Ficha técnica de Amplificadores de Mástil Terrestres 5G Televes 179.9 KB Download
