Mast amplifier 25dB 1e UHF with 5G filter

SKU
JOH7322-LTE2
Brands: Johansson
€17.07 Tax included
Johansson
Availability: In stock
24/48 Hours

Outdoor UHF amplifier 25dB with LTE2 filter

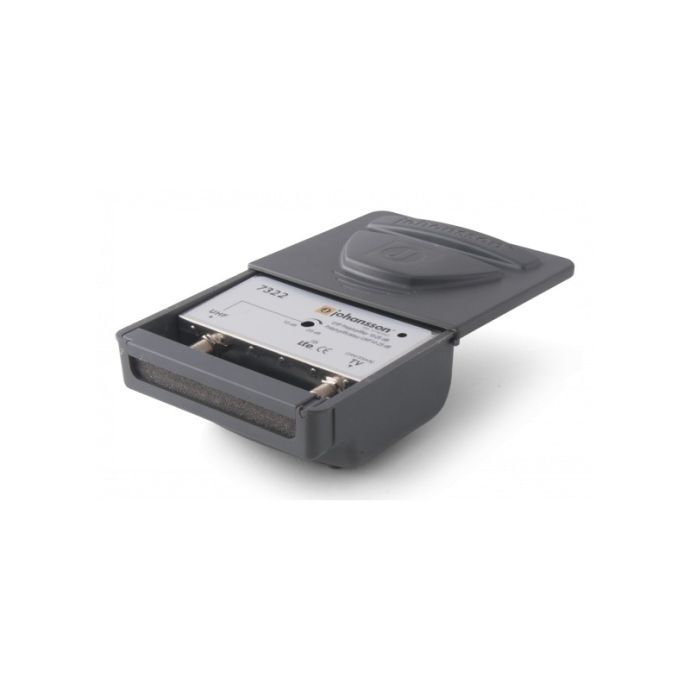

Johansson 7322 1-input DTT mast amplifier with hood that protects it from rain and dust. This new amplifier has an adjustable gain between 10 and 25 dB for UHF with cut filter on channel 48 LTE2 to eliminate interference with the 5G band and GSM trap.

Amplifier equipment with high selectivity, low consumption and very low noise level, with a maximum output level of 100 dBμV.

1-output mast amplifier for UHF with 25dB gain between channels 21 to 48.

What technical specifications does the Johansson 7322 mast amplifier have?

  • 1 input / 1 output
  • Frequency range: 470 ..694MHz (C21 ..C48)
  • LTE Rejection (5G)
  • Ultra low noise
  • Gain: 10-25 dB (adjustable)
  • High selectivity
  • Built-in GSM trap
  • LED power indicator
  • Mast or wall mount
More Information
EAN2073227000014
Hight0.140
Length0.060
Width0.120
DTT SystemDTT Amplifier
SERIES DTTF-connector
ColorBlack
TypeMast amplifier
EntornoExterior
# Inputs1
Outputs1
Gain25
Max. output level Ganancia (dB/uV)100
LTE compatibleNo
Current bypassTerrestrial
Product BrandJohansson
