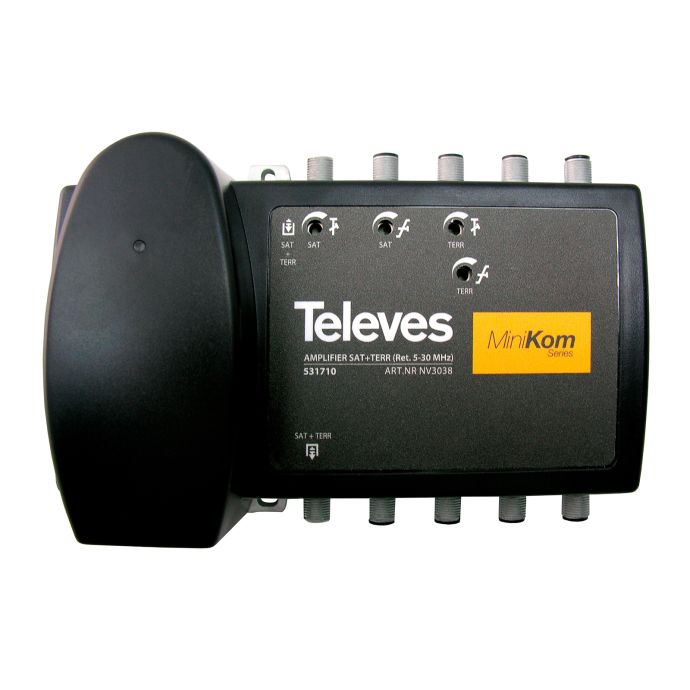

MATV + FI amplifier with 1 input and 1 output with return channel

Name: MATV + FI amplifier with 1 input and 1 output with return channel
Brand: Televes
SKU: TEL531710
Price: 168.71 EUR
Availability: InStock

SKU

TEL531710

Brands: Televes

€168.71 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

Central amplifier 1 input and 1 output

The amplifier 531710 is a central amplifier line, so it consists of an input and an output.

This panel is suitable for SMATV / CATV systems since it covers the return channel bands, VHF / UHF and FI (SAT).

In addition, thanks to its high / low gain switch, an optimal output level is guaranteed, even at very different input levels, always maintaining a low noise figure.

Details

The amplifier 531710 is a line central for MATV and FI with 1 input and 1 output.

What technical characteristics does the 531710 central have?

Control of attenuation and equalization of FI and MATV.
LED indicator of output signal.
Easy installation.
High armor chassis, manufactured in Zamak.
Low consumption.

What technical specifications does the 531710 central have?

				RETURN PATH	FORWARD PATH
				RET	TERR	SAT
Frequency range			MHz	5...30	47...862	950...2150
Gain			dB	-5	35	33-38
Return loss			dB	12	10	10
Output level	EN 50083-3	IMD3 (2ch-35dB)	dBμV	-	127	123
	EN 50083-3	IMD2 (2ch-35dB)	dBμV	-	-	119
	DIN 45004B		dBμV	-	120	-
	42 CH CENELEC	CTB, CSO (-60dB)	dBμV	-	98	-
Gain adjustment range			dB	-	0...20	0...20
Equalization range			dB	-	0...20	0...15
Noise figure			dB	-	8	-
Max. consumption			V~	196 - 253
AC Power consumption			W	9
Temperature conditions			ºC	-5 ... +45
Weight			g	710
Dimensions			mm	182 x 117 x 57

More Information

More Information
EAN	8424450188385
Hight	0.182
Length	0.057
Width	0.117
DTT System	Amplificador TDT y SAT
MANUFACTURER SERIES DTT	MiniKom
Color	Black
Type	Line amplifier
Entorno	Interior
# Inputs	1
Outputs	1
Gain	35
Max. output level Ganancia (dB/uV)	127
LTE compatible	No
Current bypass	Satellite, Terrestrial
Product Brand	Televes
