Maxi 7'' Hands-Free WiFi Monitor for Comelit VIP System

SKU
COM6842W
Brands: Comelit
€676.04 Tax included
Free shipping
(Iberian Peninsula)
Comelit
Availability: In stock
24/48 Hours

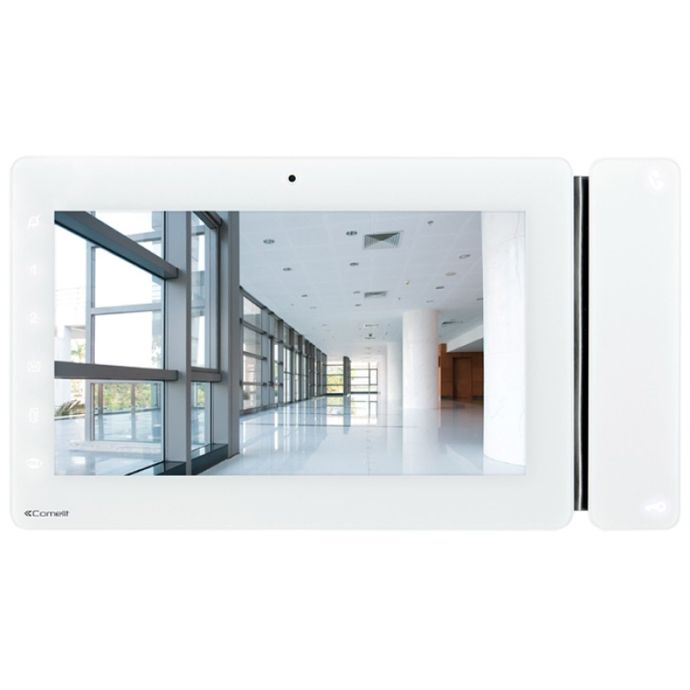

Comelit Maxi 7" Handsfree Monitor for VIP 6842W VIP System

Comelit's 7" Maxi de monitor, with VIP system for use in residential, commercial and industrial building installations. The monitor has a full colour screen with widescreen 16:9 widescreen and touch screen. It has full duplex speakerphone with magnetic induction.

You can manually modify various functions of the monitor, such as colour level, contrast, sound volume and ringtone volume. We can also customise the ringtone.

It has an opening and audio button by default. On the other hand, we can find 12 programmable keys, privacy function, message menu, auto power on.

Manages call landing and call replay as standard. Dimensions (W x H x D): 223x124x25mm. Can be installed on a surface or desktop base.

Technical Specifications of the Comelit Maxi 7" Handsfree Monitor for VIP 6842W VIP System

MONITOR MAXI 7 PULGADAS WIFI, VIP
GENERAL INFORMATION
Height (mm) 124
Width (mm) 223
Depth (mm) 25
Product weight (g) 700
Product color White RAL9003, gray base RAL7001
Lining material type ABS, Glass
flush mounting Yes, with a dedicated accessory
wall mount Yes, with a dedicated accessory
desktop mount Yes, with a dedicated accessory
COMPATIBLE SYSTEMS
ViP Yes
screen
Display size (") 7
aspect ratio 16:09
Touch screen Yes, resistive
Resolution (pixels) 800x480
On Screen Display (OSD) Yeah
AUDIO FEATURES
Induction Loop Function Yes
Microphone 4mm (Ø), Omnidiretional
Speaker 80mm (Ø), 80 Ohm, 1W
Technologies implemented Full-Duplex
ELECTRICAL CHARACTERISTICS
Power supply type PoE
PoE power supply Standard IEEE 802.3af, Comelit PoE (56VDC)
Stand-by absorption (W) 2,75
MAXI 7 INCH WIFI MONITOR, VIP
ELECTRICAL CHARACTERISTICS
Maximum absorption (W) 4,83
HARDWARE FEATURES
Button type Capacitive
Service buttons Door opener, Answer, Silent (Privacy), Menu, Messages, Door open
Number of programmable buttons for additional functions 2
Terminals CFP1 In1 Al Pan Out1 S+ S- 0V
Removable terminals Forks
Number of entries (no.) 1
Number of outputs (no.) 1
Supported memory card Micro-SD (not supplied)
Communication ports RJ45 (Ethernet)
SETTINGS
Speaker volume Yes
Microphone volume Yes
Ringtone volume Yes
Brightness of the screen Yes
Screen contrast Yes
Screen color Yes
Screen backlight Yes
NETWORK AND COMMUNICATION PROTOCOLS
LAN network type Ethernet 10/100 Mbit/s, IEEE 802.3, IEEE 802.3u (Fast Ethernet)
Wi-Fi connection type IEEE 802.11 b/g/n, 2.4 Ghz, 13 channels
MONITOR MAXI 7 PULGADAS WIFI, VIP
NETWORK AND COMMUNICATION PROTOCOLS
Supported encryption and authentication method OPEN networks WPA-PSK, TKIP WPA2-PSK, AES WEP 64 bits
(5-digit ASCII or 10 hexadecimal codes), 128-bit WEP (13-digit ASCII or 26 hexadecimal codes), WPS Authentication (compatible with WPA2-PSK)
IP address assignment DHCP
IoT connection to Comelit Cloud Yes
Firmware update via Comelit Cloud Yes
More Information
EAN8023903343496
Hight0.300
Length0.070
Width0.200
ACCESOS - SISTEMAVIP (IP System)
ACCESOS - SERIEMAXI
ColorWhite
Color Portero/VideoporteroColor
TypeMonitor
Product BrandComelit
