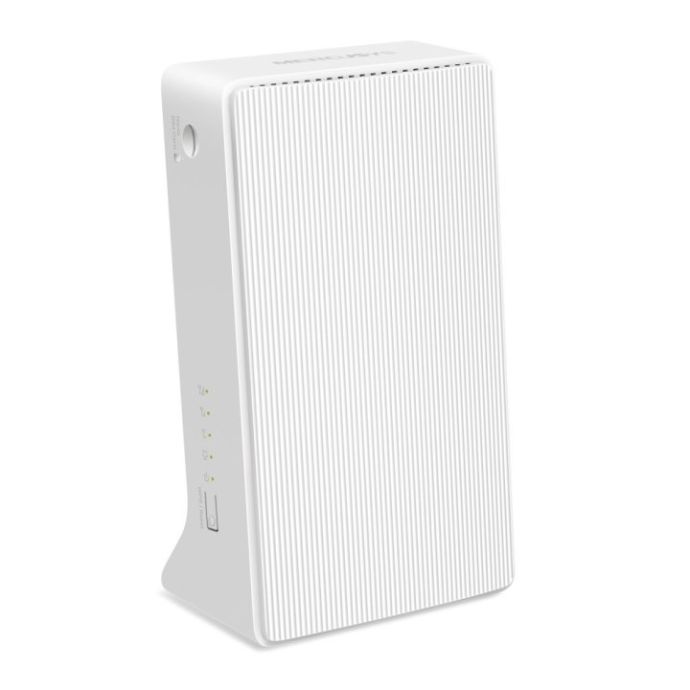

Technical Specifications Mercusys 300Mbps 4G WiFi Router
WAN connection
Ethernet WAN: Yes
DSL WAN: No
SIM card slot: Yes
Compatible with 3G / 4G USB modem: Yes
WAN connection type: RJ-45
Wireless LAN Features
Wi-Fi Band: Single Band (2.4GHz)
Wi-Fi Standard: Wi-Fi 4 (802.11n)
WLAN data transfer rate (max.): 300 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Connection
ethernet: yes
Ethernet LAN interface type: Ethernet
Ethernet LAN, data transfer rate: 10,100 Mbit/s
Port Forwarding: Yes
Dynamic DNS: Yes
Mobile networks
Mobile network generation: 4G
Dual SIM support: No
3G standards: HSPA, HSPA+, MTS
4G standard: LTE-TDD & LTE-FDD
SIM card type: NanoSIM
Ports and Interfaces
Ethernet LAN (RJ-45) number of ports: 2
USB port: No
DC input plug: Yes
Management Features
Wi-Fi Multimedia (WMM)/(WME): Yes
Restore button: Yes
WPS push button security: Yes
Security
Supported security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall: Yes
Port-Based Network Access Control (PNAC): Yes
Filtering: Yes
MAC address filter: Yes
IP address filter: Yes
Protocols
DHCP server: Yes
Universal Plug and Play (UPnP, Universal Plug and Play): Yes
VoIP protocols: IPv4, IPv6
Design
Product Type: Desktop/Pole Router
Product Color: White
Indication light: Yes
Antenna
Antenna Design: Internal
Antenna type: 2x2
Energy control
Power: AC
Output voltage: 9V
Output current: 0.85A
Environmental conditions
Relative humidity range during storage: 5 - 90%
Weight and measurements
Height: 150.5mm
