Multi-antenna 20.5dB Mimetized TDT Antenna
Multiband Active DTT Antenna with Dual Polarization 20.5dB
This antenna arises as a need to operate in areas where it is necessary to minimize the visual impact. Designed and created by a couple from Granada to provide a sustainable alternative solution to the Yagi antennas of visual pollution in the Albaicín of Granada. The TFM24MH/V system is the result of years of research in the search for a DTT antenna with zero visual impact and reduced size with the same characteristics as a much larger active antenna.
This antenna is ideal in residential areas where we want to prioritize the visual noise and maintain the natural landscape, in monumental environments or areas with adverse weather conditions. Each antenna is manufactured and calibrated by hand to achieve the highest efficiency.
This mimic antenna is capable of receiving TV signals (DVB-T) in both horizontal and vertical polarization. It has a high gain of 20.5dB. It operates in the frequency range of 470 to 694MHz. It includes dual-stage bandpass and 5G LTE rejection filter. With an impedance of 75Ohm and a built-in amplifier of very low noise less than 0.4dB, which also provides stability.
Power is supplied through the coax from a 230V mains adapter. This antenna consumes very little power, about 0.4W. Very compact and robust, able to withstand adverse weather conditionss such as ice or snow. It is an ideal solution in areas with strong winds.

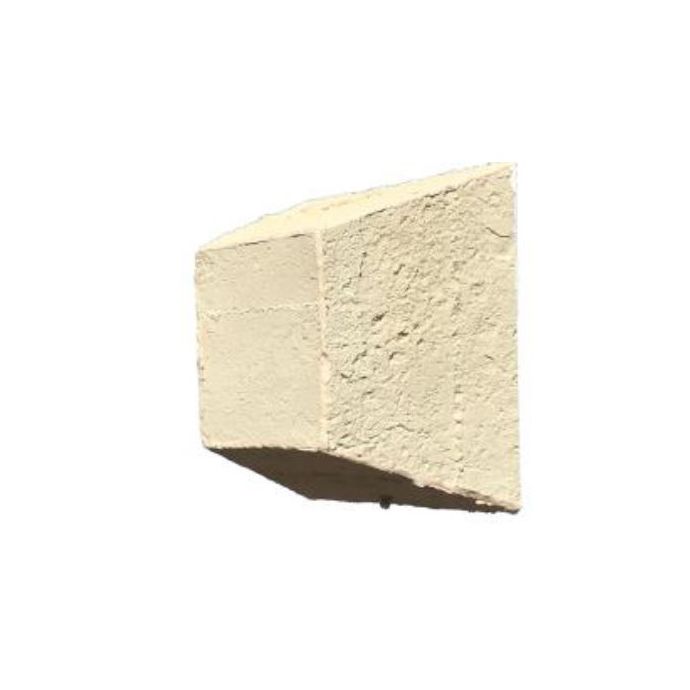

Made of fiberglass that simulates the appearance of concrete or stone, it can be painted or decorated in any color to further enhance the mimicry.
Wall or wall mounting by means of 4 eyebolts (including mounting template), vertical mast or wall bracket, with a maximum diameter of 40mm.
This "homemade" antenna is the result of combining gain, structural stability and integration capability to achieve an advanced small size solution to the problem of Visual pollution.
