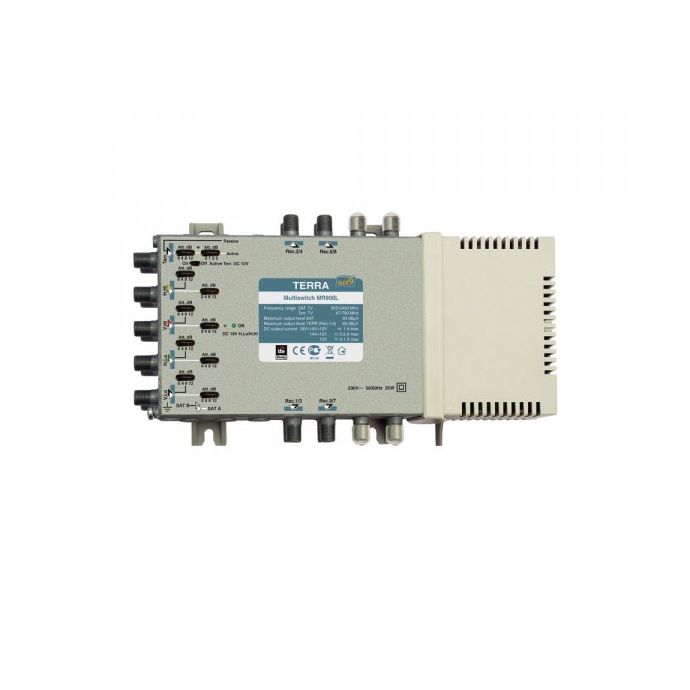

Radial Active IF Multiswitch 9 Inputs x 8 Outputs Terra

Active Radial Multiswitch with 8 IF Inputs + 1 TERR and 8 Outputs

What technical specifications does the Terra MR908L Multiswitch have?

• Number of entries: 9
• Number of outputs: 8
• Frequency range:

  • SAT: 950-2400 MHz
  • TV: 47-862 MHz
• SAT gain: 3 ... 8 dB
• TERR gain (active):

  • Output 1-8: 1 ... 4 dB
• TERR loss (passive):

  • Output 1-8: 28 dB
• Maximum output level for SAT IF (IMD3 = 35dB): 93 dBuV
• Maximum output level for terrestrial TV (DIN45004B):

  • Output 1-8: 85 dB
• Isolation between SAT inputs:> 30 dB
• Isolation between outputs:> 30 dB
• DC voltages at the inputs: H/Lo, H/Hi - 18V; V/Lo, V/Hi - 14V; Terr. TV - 12V
• Current consumption (from receiver input): <60 mA
• Control signals: 14/18V, 0/22kHz, Tone Burst or DiSEqC 2.0
• Power consumption: 230V ~ 50 / 60Hz 4W
• Operating temperature range: -20 ºC ~ +50 ºC
