NVR Recorder 8 Channels IP 4Mpx PoE

SKU
HWN-2108MH-8P
Brands: Hikvision
€158.81 Tax included
Hikvision
Availability: In stock
24/48 Hours

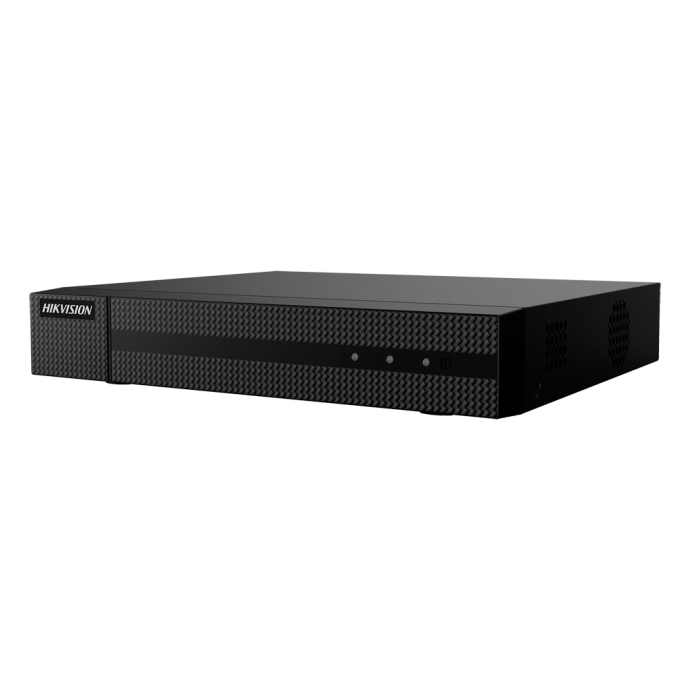

8 Channel IP POE NVR recorder with 8Mpx resolution HWN-2108MH-8P

The Hikvision recorder has 8 IP POE channels of 8Mpx resolution to connect IP security cameras. We can connect up to 8 security cameras through the RJ45 ports, which are also PoE, so they can supply power to the cameras that we connect to the recorder.

The recorder has an RCA audio input and output, for cameras that incorporate a microphone and speaker. It also has a Full HD HDMI output and a VGA output, in case we want to connect a monitor, for example.

The recorder has space for a hard drive of up to 6TB, which is not included.

Technical Specifications of the 8 Channel IP POE NVR Recorder with 8Mpx Resolution HWN-2108MH-8P



Brand Hikvision
Inputs for IP cameras LAN port up to 8 channels
Power over Ethernet 8 port PoE Switch IEEE802.3af/at (max. 75 W)
IP compatible cameras HIKVISION, ONVIF
Bidirectional audio 1 input / 1 RCA output
Video outputs 1 HDMI Full HD, 1 VGA
Video compression format H.265+ / H.265 / H.264+ / H.264
Display resolution 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Total bandwidth 60 Mbps downstream / 60 Mbps upstream
Main Stream recording 4MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Decoding capacity 1CH@4Mpx or 2CH@1080p
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms No
Recording method Manual, programmed, motion detection
External Backup USB memory / HDD USB / CD-RW USB / DVR-RW USB
Internal memory 1 SATA HDD 3.5" of up to 6 TB (not included)
Communication 2 x USB 2.0 / 1 x RJ45 10/100/1000 (Ethernet)
Remote access Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200
Power DC 48 V, 50/60 Hz
Dimensions / Weight 48 (H) x 315 (W) x 240 (D) mm / 1.0 Kg (without HDD)
More Information
EAN6941264092179
Hight40.000
Length40.000
Width27.000
SECURITY - SYSTEMIP
SEGURIDAD - SERIE4Mpx
IncludedMouse, Power supply
Event notifierNo
No. CCTV Recorder Inputs8 IP
Audio in ports1
Product BrandHikvision
