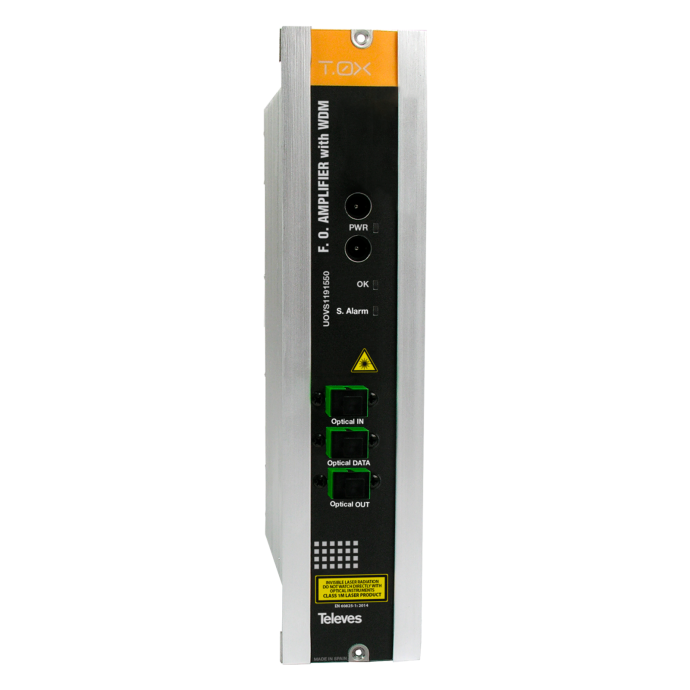

Optical amplifier with 1 input and 1 output 234221 from Televes

Televes amplifier 234221 amplifies the optical signal of 1550nm, generating an optical output power of 19dBm.

What technical characteristics does the 234221 amplifier have?

• Includes WDM for RF multiplexing Overlay with GPON signals
• Input range from -10 to + 10dBm
• Leds status indicators
• Optical amplification for RF over fiber service (RF Overlay) in GPON networks
• Indicated to cover large distances
• SC / APC connectors

What technical specifications does the 234221 amplifier have?

• Optics Number of ports
• 1 RF Overlay @ Optical IN
• 1 GPON @ Optical DATA
• 1 (GPON + RF Overlay) @ Optical OUT (COM)
• Work wavelength
• nm
• 1310 ± 20 @ Upstream
• 1490 ± 20 @ Downstream
• 1530 ... 1565 @ RF Overlay
• RF Overlay Input
• dBm -10 ... +10
• RF output power overlay
• dBm 19
• Figure of noise
• dB 5 (Pin = 0 dBm @ 1550 nm)
• Insertion loss (1310 & 1490nm)
• dB <1
• Return losses
• dB> 40
• C / N
• dB 51
• CSO
• dB> 65
• CTB
• dB> 65
• general
• Supply voltage Vdc 24
• Max consumption mA current ~ 250
• Max power consumed W 6
• Optical connectors Type SC / APC
• Operating temperature ºC / ºF -5 ... + 45 / + 23 ... + 113
• IP protection index 20
