Promax Video/Audio to DTT Converter in Standard Definition (SD)

Name: Promax Video/Audio to DTT Converter in Standard Definition (SD)
Brand: Promax
SKU: PROEN-504C
Price: 2477.48 EUR
Availability: InStock

SKU

PROEN-504C

Brands: Promax

€2,477.48 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

Promax Video/Audio to DTT Converter in Standard Definition (SD)

We present you an excellent and economical solution to face the SD blackout in large complexes such as hotels, hospitals, social health complexes or any collective television distribution installation, so that you can continue using the old televisions, even if they are not HD.

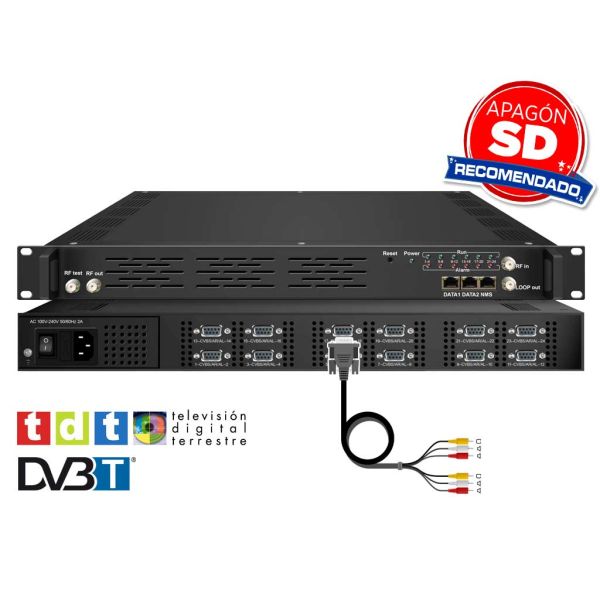

The EN-504C integrates an encoder, a multiplexer and a modulator in a single device. It allows you to create up to 4 DTT multiplexes with up to 6 channels each, being able to generate up to 24 DTT channels.

The broadcast quality RF output with MER>42dB is ready to be connected to the building's wiring network and can extract copies of the channels in the form of 4 MPTS streams through the RJ45 port. It also has an IP input in which we can enter IP flows to create DTT channels.

Includes PID remapping, PCR tuning, and insert editing of PSI/SI tables. Updates are carried out through the Ethernet port.

Details

Technical Specifications of the Promax Video/Audio to DTT Converter in Standard Definition (SD)

SPECIFICATIONS	EN-504C AUDIO/VIDEO CONVERTER TO DVB-T DVB-T IN STANDARD DEFINITION
ENTRANCE	8 CVBS analog stereo video/audio inputs, RCA connection RF input to tune and remix an existing DVB-T signal, type F connection DATA1 and DATA2 ports for 128 IP streams over UDP and RTP, RJ45 connection
VIDEO ENCODING Resolution 720x576 50i Resolution 720x480 60i Encoding formats Bit rate Coding speed GOP structure Advanced video preprocessing"	720x576, 352x288, 320x240, 320x180, 176x144, 160x120, 160x90 (50Hz) 720x480, 352x288, 320x240, 320x180, 176x144, 160x120, 160x90 (60 Hz) MPEG-2 or MPEG-4 H.264 AVC From 0.5 to 5 Mbps CBR (constant bit rate) or VBR (variable bit rate) IPPP, IBPBP, IBBPB, IBBBP Deinterlacing, noise reduction
SOUND CODING Coding formats Sampling rate Bits per sample Bit rate	MPEG-1 Layer II, LC-AAC, HE-AAC 48kHz 32 bit From 48 to 384 kbps per channel
MULTIPLEXER Maximum PID Remapping Functions	128 input PIDs per channel PID remapping (automatic or manual), PCR fine-tuning, Automatic generation of PSI/SI tables Up to 2 combined DVB-T multiplexes EN3000744
DVB-T MODULATOR MER Standard Output Output Frequency FFT Mode Constellation Bandwidth Guard Interval FEC	≥42dB
OUTPUT FLOWS	50 to 960 MHz (1 kHz steps) 2K
FUNCTIONS	QPSK, 16QAM, 64QAM 6M, 7M, 8M
GENERAL SPECIFICATIONS Mechanical characteristics Environmental conditions Food	1/4, 1/8, 1/16, 1/32

More Information

More Information
Hight	0.000
Length	0.000
Width	0.000
DTT System	Cabeceras
MANUFACTURER SERIES DTT	F-connector
Color	Silver
Type	Transmodulator
Input signal	DVB-T
# Inputs	24
Output mux	2
Common interface	No
Product Brand	Promax
