Qualifier for Cables, Copper Networks and Gigabit Fiber Optic

SKU
PROIC075D
Brands: Promax
€2,967.08 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

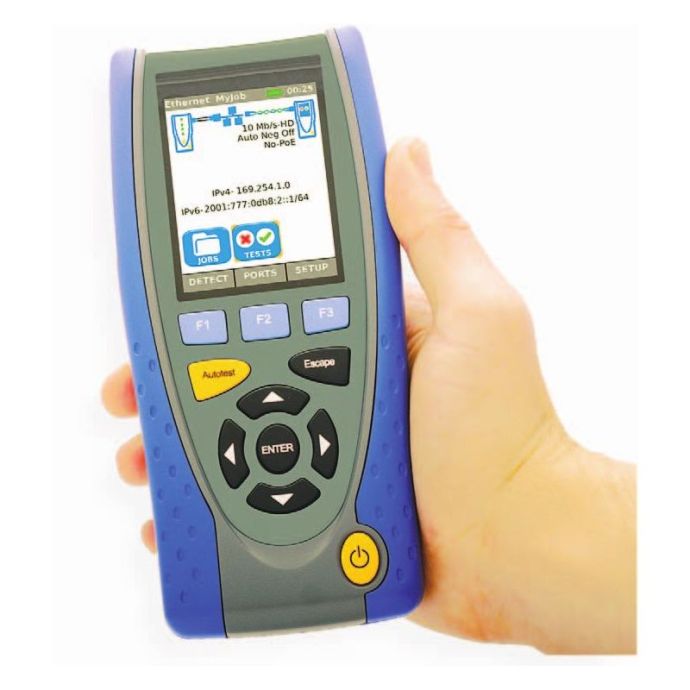

Promax IC-075D Copper and Fiber Optic Cable Qualifier

Qualifier designed to confirm the correct installation of structured cabling (UTP/FTP/STP) and fiber optics, for voice, video, data and CCTV applications over Megabit or Gigabit Ethernet.

Essential tool for data cable installations, IT administration and LAN testing. Equipment compatible with PoE/PoE+, IPv4 and IPv6. It supports cables of categories 3, 5, 5e, 6 and 7. Its battery offers a range of up to 5 hours, with a charging time of 3 hours.

This equipment performs the following functions: self-test function, identify Ethernet and PoE power problems, pin and pair wire mapping, load check through hubs/switches, and generation and printing of test reports through the USB connection .

It features user replaceable RJ45 ports. Optional fiber optic heads, for single mode and multimode fibers.

-
+

Cable and Twisted Pair and Fiber Optic Network Qualifier

What technical specifications does the Promax IC-075D Qualifier have?

CONNECTIONS
  • Replaceable RJ-45 connector
  • SFP Optical Connector
USB CONNECTION TO PC USB CONNECTION TO PCConnection to a PC to export measurements (XML format) and update firmware
TESTS ON COPPER NETWORKS
Mode Link Ping (IPv4 e IPv6), Traceroute (v4 y v6), Netscan, Carga PoE / PoE+ Load, Hub Blink
Mode Remote Double-Ended Wire Map, Wiring Performance
Mode Link-Remote VoIP/Web/Video/CCTV Performance, Ping (IPv4 and IPv6), Traceroute (v4 and v6), Netscan, PoE/PoE+ Charging, Blink Hub
TESTS IN OPTICAL NETWORKS
Mode Link Ping (IPv4 e IPv6), Traceroute (v4 y v6), Netscan, Hub blink
Mode Remote cable performance
Mode Link-Remote VoIP/Web/Video/CCTV performance, Ping (IPv4 and IPv6), Traceroute (v4 and v6), Netscan, Hub blink
SUPPORTED CABLE TYPES Cat3 STP, Cat5 UTP, Cat5 STP, Cat5e UTP, Cat5e STP, Cat6 UTP, Cat6 STP, Cat7, USOC, ETH S1236, ETH S1278, ETH U1236, ETH U1278, IND. M12, COAX RG59
AUTONOMY Up to 5 hours (charging time 3 hours)



More Information
EAN IC075DES01
Hight 0.240
Length 0.430
Width 0.370
Product Brand Promax
Color Blue
SERIE Certificador de red datos y telefonía
System Data
