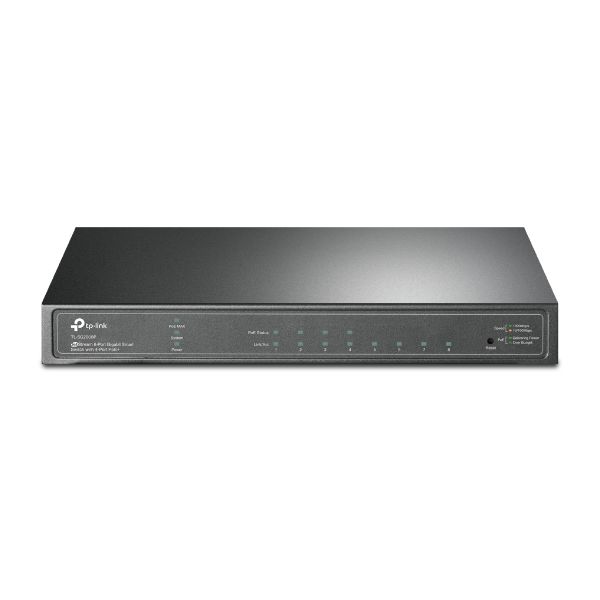

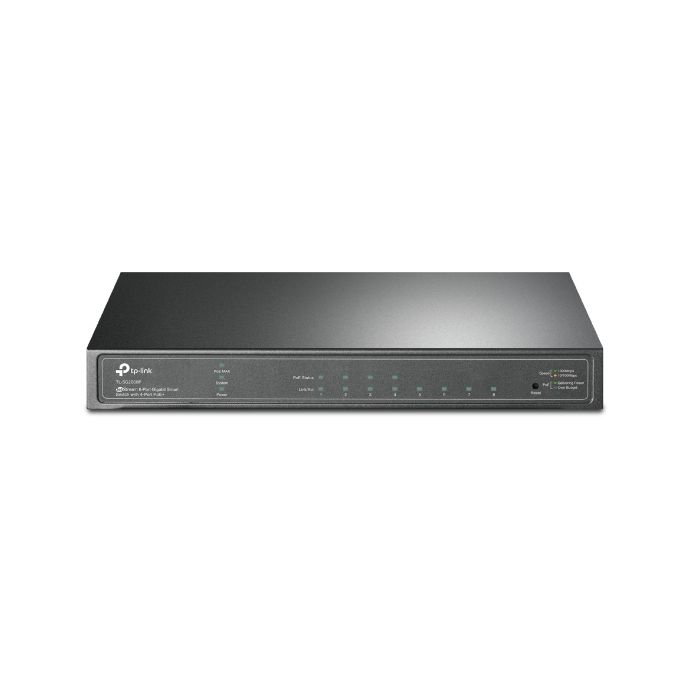

Semi-managed POE+ Switch TL-SG2008P 8P GIGA

SKU
TLSG2008P
Brands: Tplink
€129.72 Tax included
Availability: On request
1 to 7 days

Semi-managed POE+ Switch TL-SG2008P 8P GIGA

It is a very complete switch with various functionalities: VLAN, Omada Application, Management of multiple sites, Access Control List, total PoE of 62W, centralized management.

This centrally managed smart switch features 8 Gigabit ports, 4 of which are PoE+, supporting up to 62W total power. In the PoE ports you will be able to connect cameras, telephones or IP access points using a single Ethernet cable that will provide them with both data and energy transmission, reducing infrastructure costs.

The switch is compatible with most PoE devices, such as IP cameras, access points, or IP phones. Although you can also connect non-PoE devices, such as PCs, printers and IPTV.

With this switch it is possible to manage the logical grouping of devices from different physical LANs thanks to the VLAN, improving information security and reducing data congestion.

And all this, with an added value, you can centrally manage in the cloud without any complications. Everything controlled from a single interface, from anywhere and at any time.

-
+

Technical Specifications of the Semi-managed POE+ Switch TL-SG2008P 8P GIGA

Model

TL-SG2008 V4

TL-SG2008P V3

TL-SG2210P V5









General

Interface

8 10/100/1000Mbps

RJ45 Ports

8 10/100/1000Mbps RJ45

ports

8 10/100/1000Mbps RJ45 Ports

2 Gigabit SFP Slots

Flash

32 MB

DRAM

256 MB



Port Standard

IEEE 802.3i:10BASE-T Ethernet;

IEEE 802.3u:100BASE-X Fast Ethernet;

IEEE 802.3ab:1000BASE-T Gigabit Ethernet;

IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical fiber) (only for TL-SG2210P)





PoE

PoE Standard





--

802.3af/at

802.3af/at

PoE Ports

4, up to 30 W

8, up to 30 W

PoE Power Budget

62 W

61 W















Performance

Switching Capacity

16 Gbps

16 Gbps

20 Gbps

Packet Forwarding

Rate



11.90 Mpps



14.88 Mpps

MAC Address Table

8K

Packet Buffer

4.1 Mbit

Transmission Method



Store and Forward

Number of IP Interfaces



16

Number of Static

Routers



32 (IPv4, IPv6)

Jumbo Frame

9 KB

























Physical & Environment



Power Supply

12 VDC/1 A

External Adapter or Obtain Power from PoE Source



53.5 VDC/1.31 A External Adapter

Max Power

Consumption



6.4 W (220 V/50 Hz)

77.3 W (110 V/60 Hz) (with 62 W PD connected)

77.8 W (110 V/60 Hz) (with 61 W PD connected)

Max Heat

Dissipation

21.84 BTU/hr

(220 V/50 Hz)

263.6 BTU/hr (110 V/60 Hz) (with 62 W PD connected)

265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected)

Standby Power Consumption



2.56 W (220 V/50 Hz)



2.8 W (110 V/60 Hz)



4.5 W (110 V/60 Hz)

Dimensions

(W x D x H)



8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Fan Quantity

Fanless

Installation

Desktop/Wall-Mounting

Operating Temperature



0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature



-40 °C to 70 °C (-40 °F to 158 °F)

Operation Humidity

10% to 90% RH, non-condensing

Storage Humidity

5% to 90% RH, non-condensing

Certification

CE, FCC, RoHS

More Information
EAN 6935364072957
Hight 0.240
Length 0.080
Width 0.320
RED - System POE+
RED - SERIE 8 Ports
Color Black
Network Equipment Switch
Ports 8
Data Speed Gigabit (10/100/1000Mbps)
PoE Yes
Product Brand Tplink
