Technical Specifications of the Simplex Singlemode Fiber Optic Pigtail and Length 1.5 meters

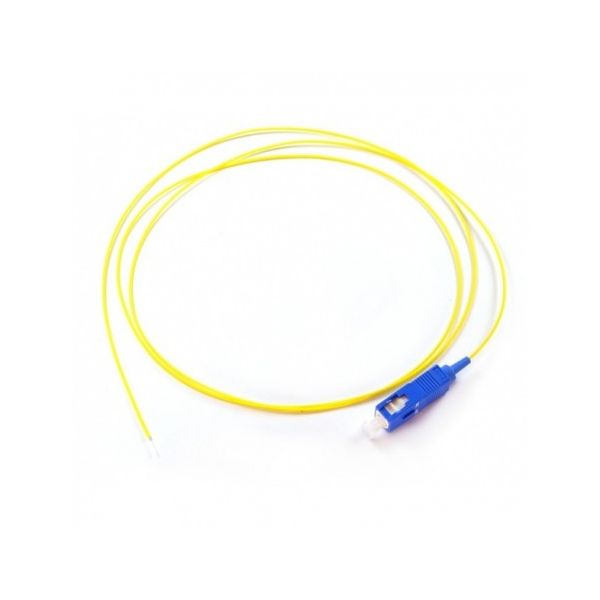

This pigtail has an SC/APC connector at one end and free fiber at the other to be spliced into the main trunking.
What technical characteristics does the SC/APC pigtail connector have?
SC/APC connector. It is single mode. It is halogen free. It has a distance of 1.5m. Insertion loss of 0.10dB. Return loss of 61.4dB.
What is a fiber optic pigtail used for?
A fiber optic pigtail cable is made up of a short strand of fiber. A connector at one end that interfaces with the equipment and bare fiber at the other end to be spliced to the fiber of the main cable.
At the bare end of the pigtail cable, the colored coating (Coating) is stripped and fused or spliced to a fiber or a multi-fiber trunk.
A pigtail splice "opens up" the multi-fiber backbone for connection to end equipment.
