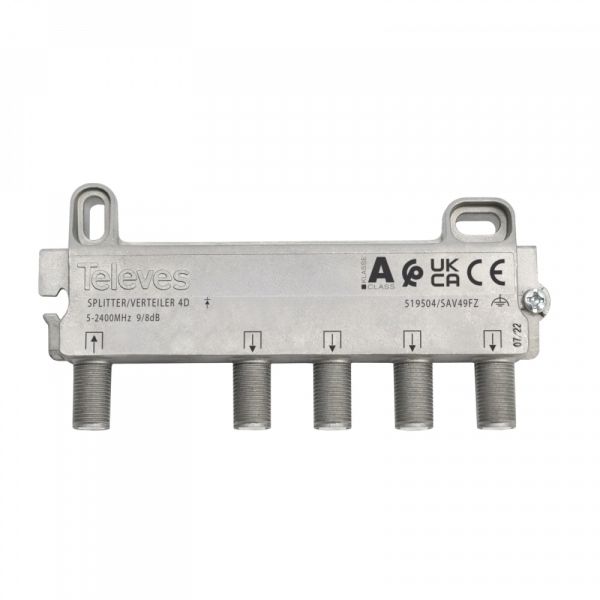

Splitter 4 Outputs Connector F 9/8dB of Televes

SKU
TEL519504
Brands: Televes
€6.69 Tax included
Availability: In stock
24/48 Hours

TDT-SAT distributor 4 outputs F Televes 519504

Televes 519504 interior distributor with 4 directions with F-type connectors. This distributor works in the frequency range 5 to 2400 MHz and has an attenuation of 9dB for terrestrial signal and 8dB for satellite.

It is used to distribute the TV signal from a coaxial cable up to 4 sockets in the house. Includes DC current step to power the LNB of the satellite antenna.

-
+

Technical Specifications of TDT-SAT Distributor 4 outputs F Televes 519504



Frequency range MHz 5 ... 2400
Number of outputs   4
Inputs/Bands
TERR SAT
Through losses dB
9 8
Rejection between outputs dB
> 20 > 20
Voltage max. Vdc 24
Max. current mA 350
DC pass   Out→In
More Information
EAN 8424450267875
Hight 0.050
Length 0.012
Width 0.050
DTT System DTT & SAT Distribution
MANUFACTURER SERIES DTT F-connector
Color Silver
TV-SAT Distribution Equipment Distributor
Entorno Interior
TV-SAT Distribution Connection F
Outputs 4
Product Brand Televes
